TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 319
Accessible drives and LSD
Ê Ensure that the slimline ODD mounting bracket is properly seated on the
drive as shown.

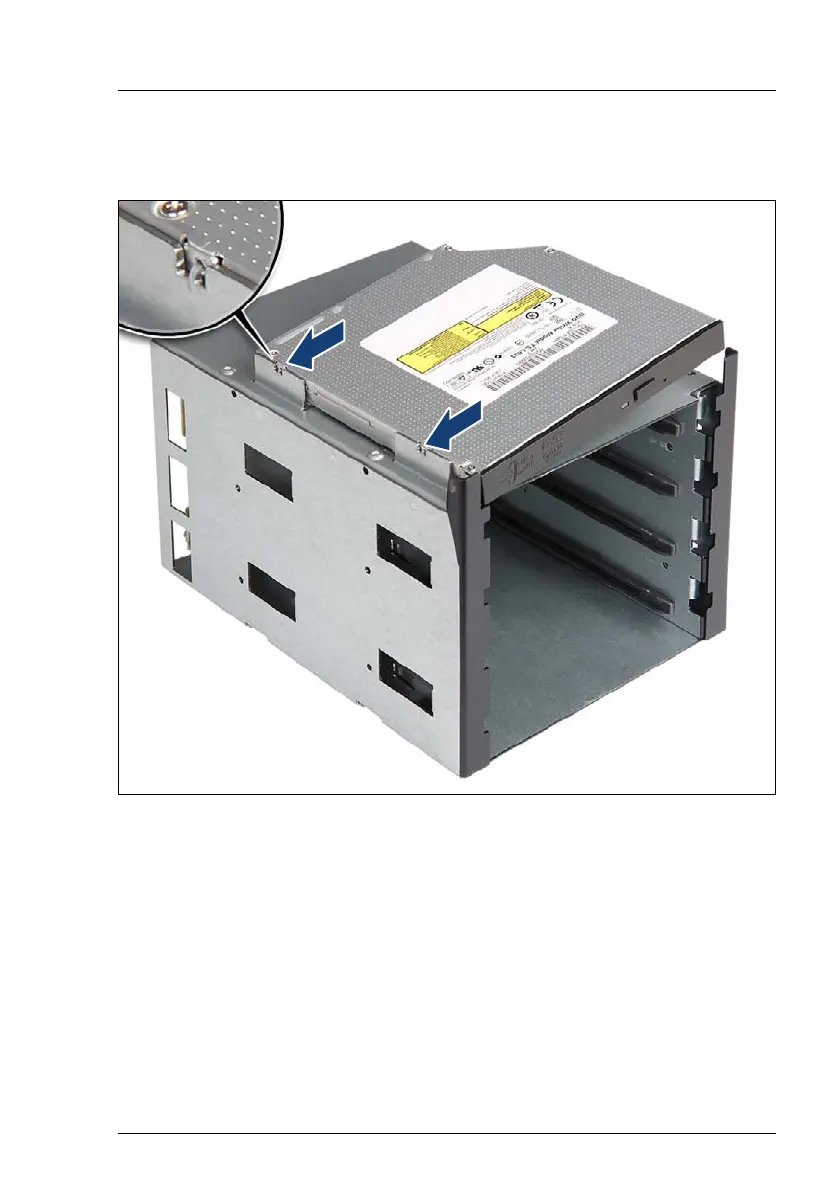

Figure 237: Installing the slimline ODD on the HDD extension box
Ê Hook the two latches on the left edge of the slimline ODD into the metal
guides on the 4x 3.5-inch HDD extension box as shown (see close-up).
Ê Fold down the slimline ODD.
