320 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Accessible drives and LSD

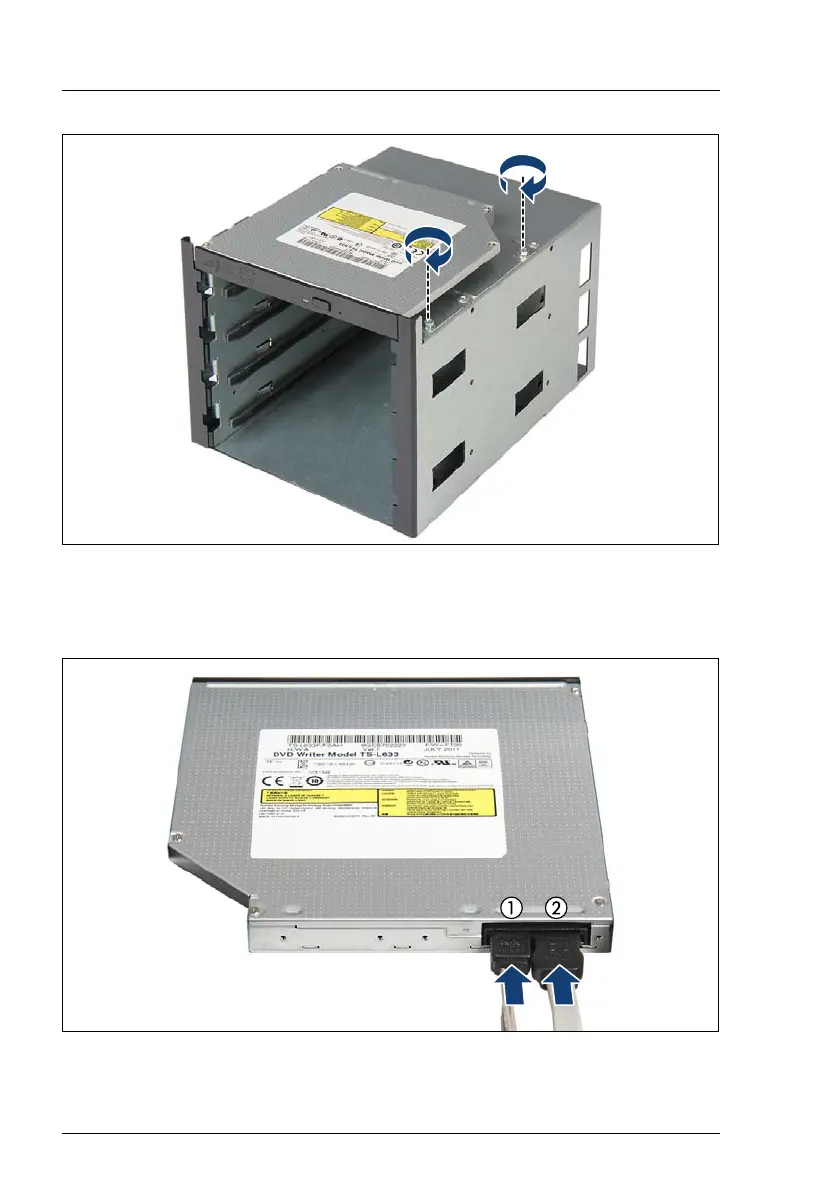

Figure 238: Installing the slimline ODD on the HDD extension box (B)
Ê Secure the slimline ODD mounting bracket on the 4x 3.5-inch HDD
extension box with two screws.
Figure 239: Connecting cables
Ê Connect the power cable (1) and the SATA cable (2) to the slimline ODD.
