TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 331
Front panel and external connectors
Removing the front panel module

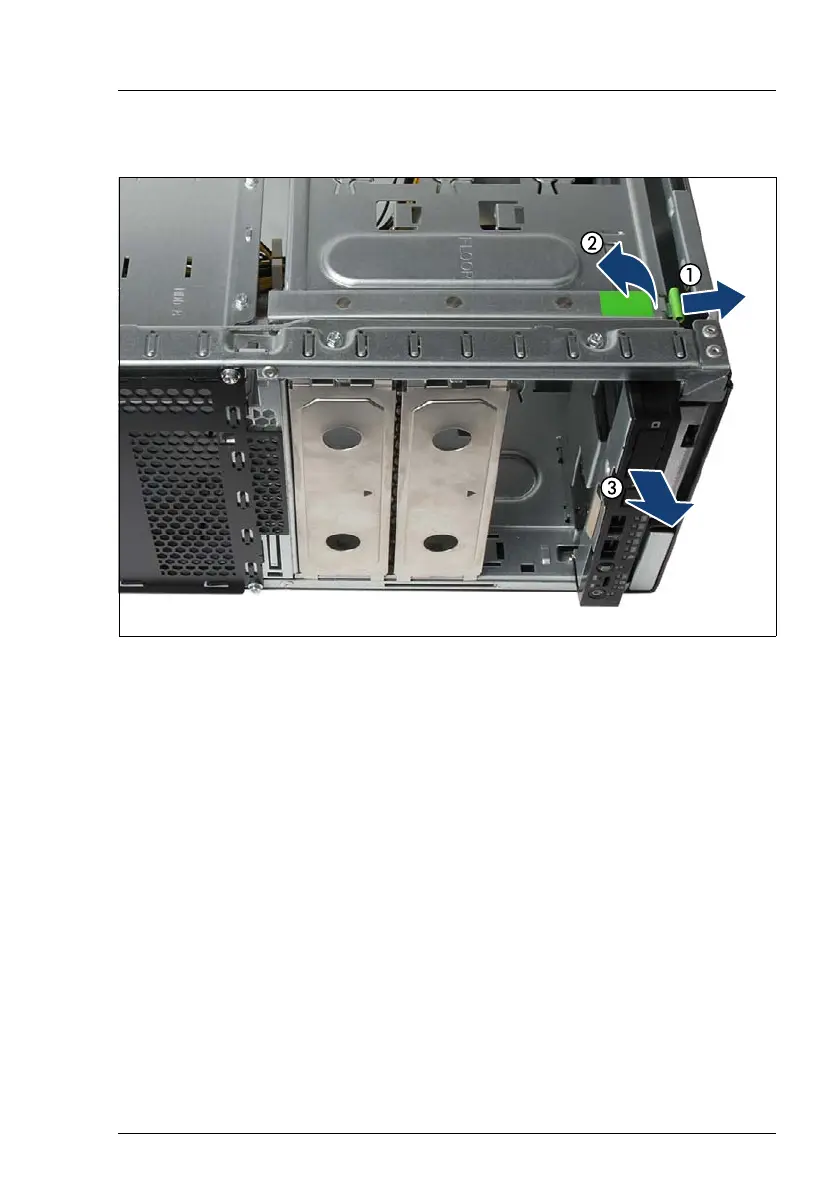

Figure 248: Removing the front panel module
I The front cover (tower server) / rack mounting frame (rack server) does
not need to be removed in order to replace the front panel module. In the
figures, the front cover / rack mounting frame has been removed for
illustration purposes only.
Ê Press out on the locking latch to disengage the accessible drive locking bar
(1).
Ê Fold up the accessible drive locking bar (2).
Ê Remove the front panel module (3).
