332 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Front panel and external connectors
I Unlocking and securing the front panel and accessible drives is
illustrated by the example of tower servers. In case of rack servers, the
accessible drive locking bar is located on the side of the drive bay. In this
case, proceed as follows:

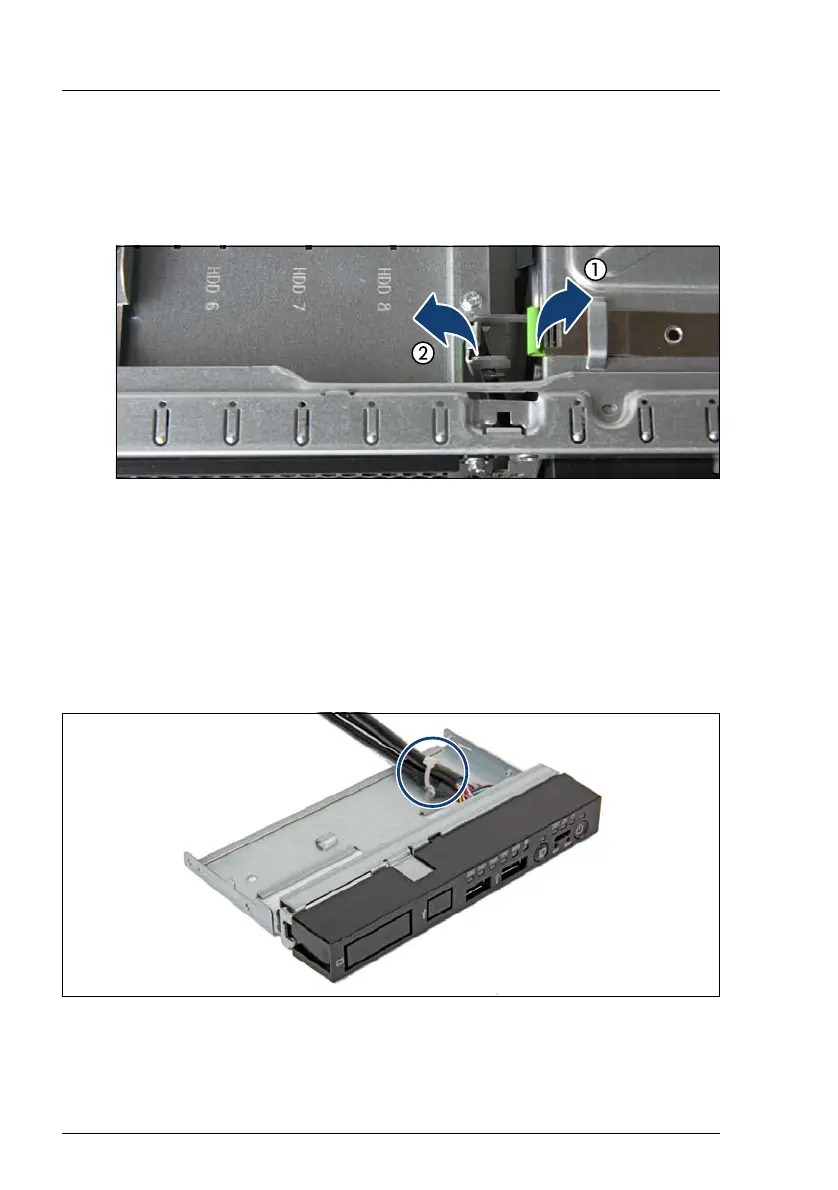

Figure 249: Removing the front panel module (rack systems)
Ê Pull up on the locking latch to disengage the accessible drive locking
bar (1).
Ê Fold out the accessible drive locking bar (2).
Ê Remove the front panel module.
Removing cables from the front panel module
Figure 250: Front panel module - cable tie
Ê If neccessary, cut the cable tie and remove it. The cable tie must not be
replaced.
