TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 341
Front panel and external connectors

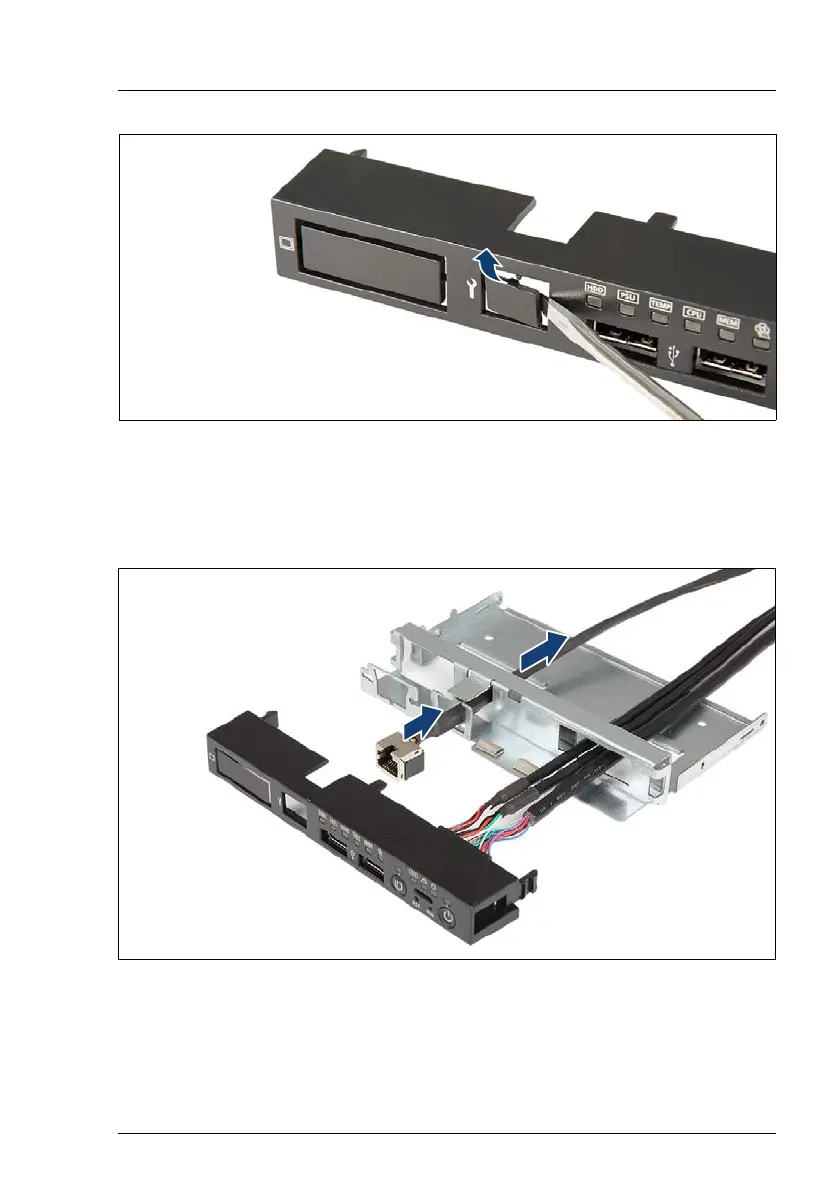

Figure 259: Breaking out the front LAN cover plate
Ê Break out the front LAN cover plate on the front panel cover.
I Please note that once removed, the front LAN cover plate cannot be
refitted.
Figure 260: Installing the front LAN connector (A)
Ê Run the front LAN cable through the mounting bracket on the front panel
frame as shown.
