342 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Front panel and external connectors

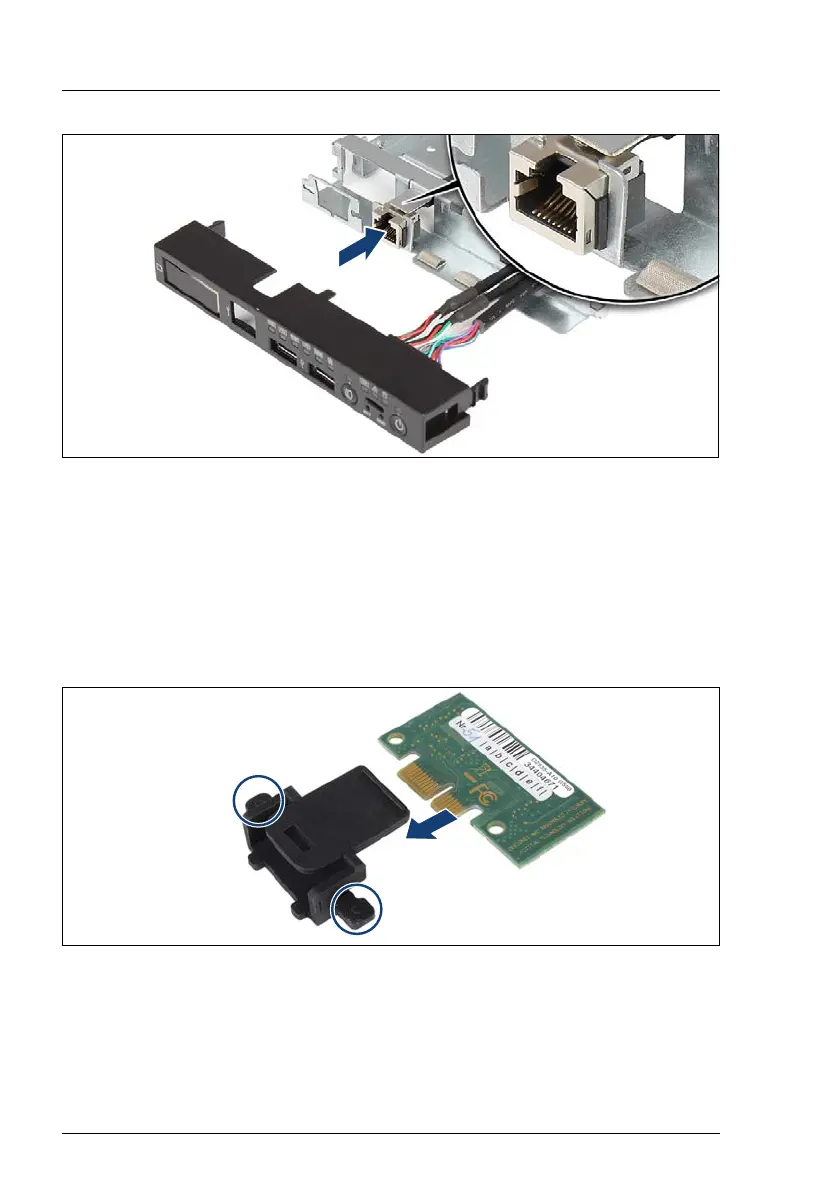

Figure 261: Installing the front LAN connector (B)
Ê Carefully snap the front LAN cable connector into the mounting bracket (see
close-up).
Ê Install the front panel module cover on the front panel frame as described in
section "Installing the front panel module cover" on page 335.
Ê Install the front panel module as described in section "Installing the front
panel module" on page 337.
Figure 262: Assembling the front LAN board
Ê Insert and push the front LAN board into the front LAN holder until the two
locking pins in the holder snap in place.
Ê Connect the front LAN board to connector "Front LAN" on the the system
board.
