Fujitsu PRIMERGY TX150 S8

To Next Page

To Previous Page

TX150 S8 / TX200 S7

Upgrade and Maintenance Manual 363

System board and components

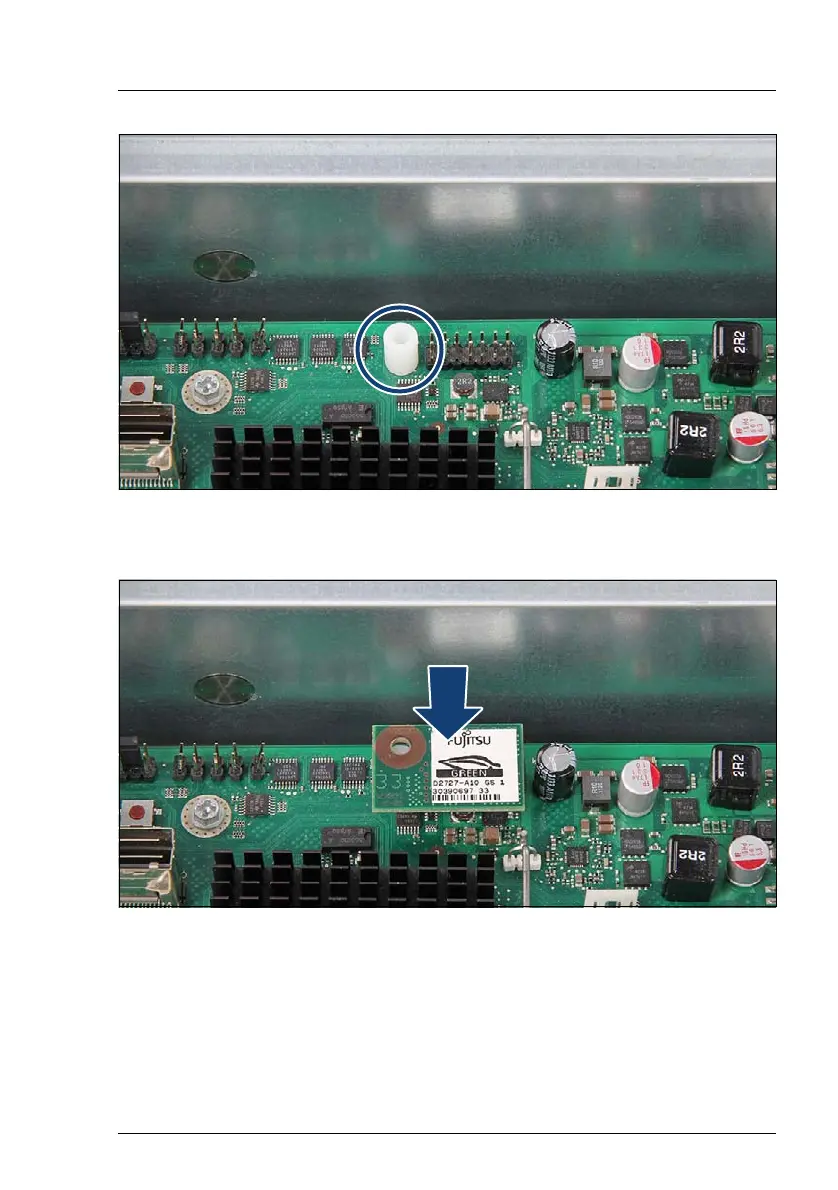

Figure 277: Installing the TPM spacer

Ê Snap the TPM spacer into the cut-out in the system board.

Figure 278: Installing the TPM

Ê Connect the TPM to the system board.
