364 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
System board and components

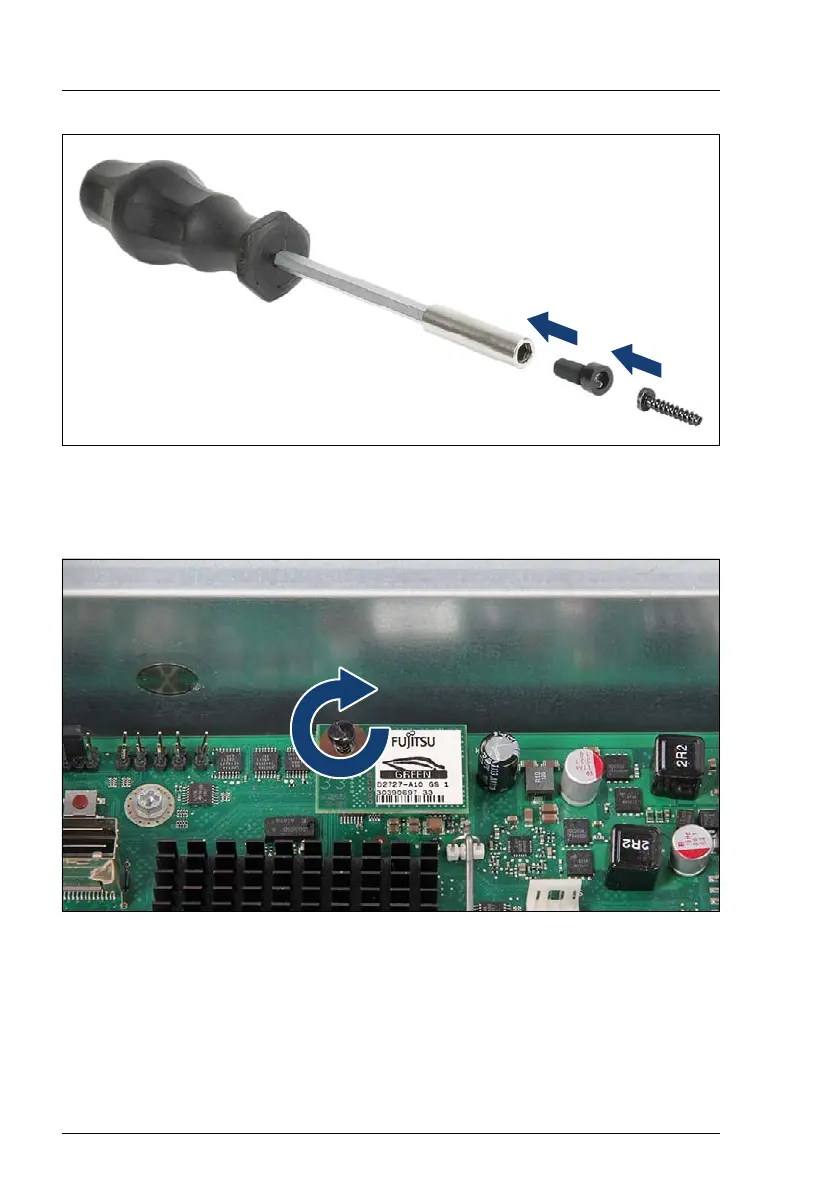

Figure 279: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
Figure 280: Securing the TPM
Ê Secure the TPM with the TPM screw using the TPM bit insert.
I Do not fasten the screw too firmly. Stop as soon as the head of the
screw lightly touches the TPM.
