TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 379
System board and components

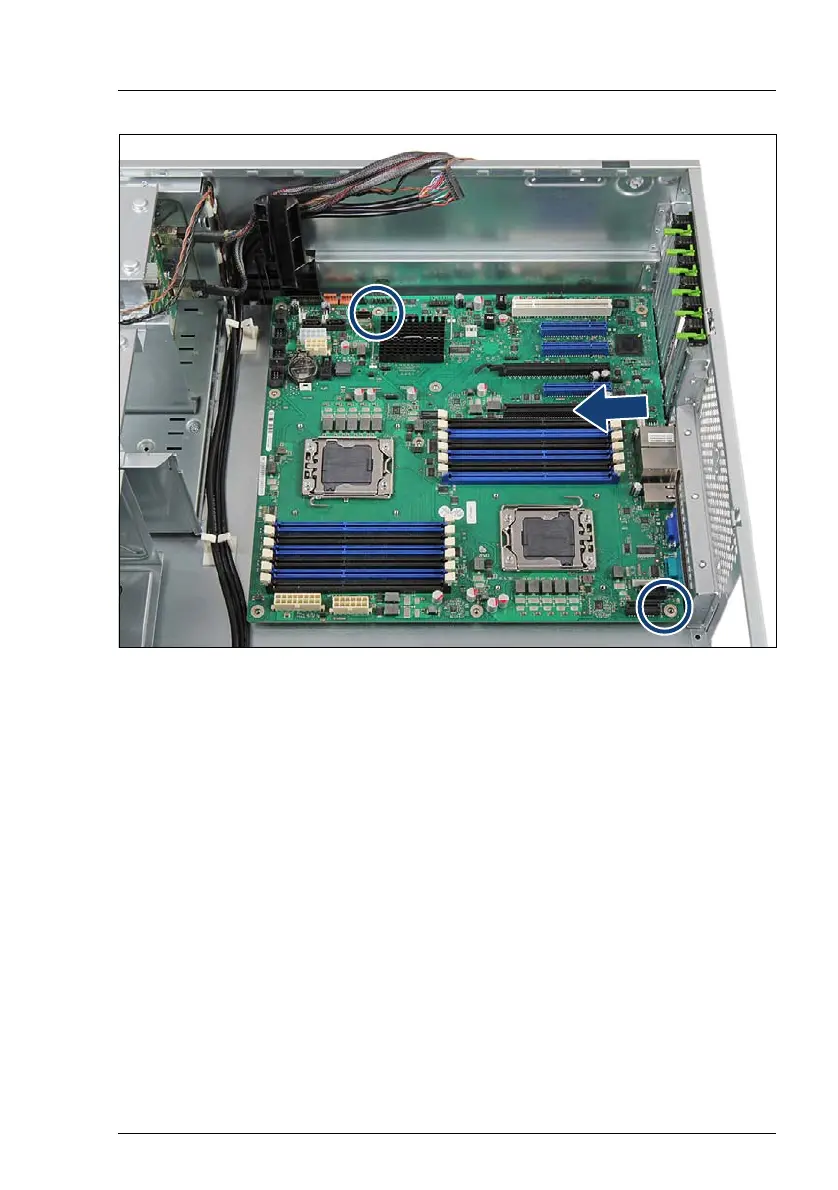

Figure 288: Removing the system board (B)
Ê Slightly lift up the system board by the memory module ejectors and a PCI
slot in order to detach it from the centering bolts (see circles).
Ê Carefully shift the system board towards the server front until the plug shells
disengage from the cut-outs in the connector panel.
