Fujitsu PRIMERGY TX150 S8

To Next Page

To Previous Page

394 Upgrade and Maintenance Manual

TX150 S8 / TX200 S7

Converting a tower model to a rack model

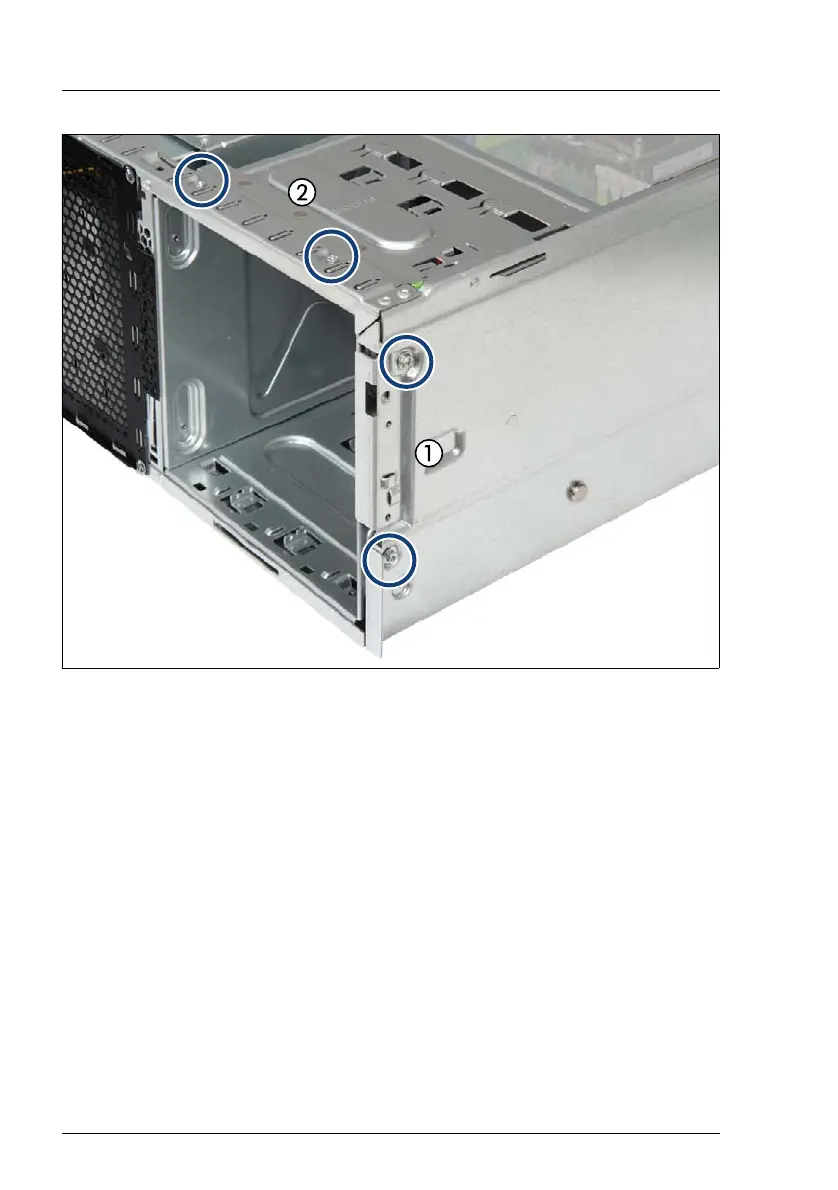

Figure 300: Detaching the accessible drive cage (B)

Ê Remove two screws from the right chassis edge (1).

Ê Remove two screws from the top edge of the chassis (2).
