TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 397
Converting a tower model to a rack model
Reinstalling the accessible drive cage

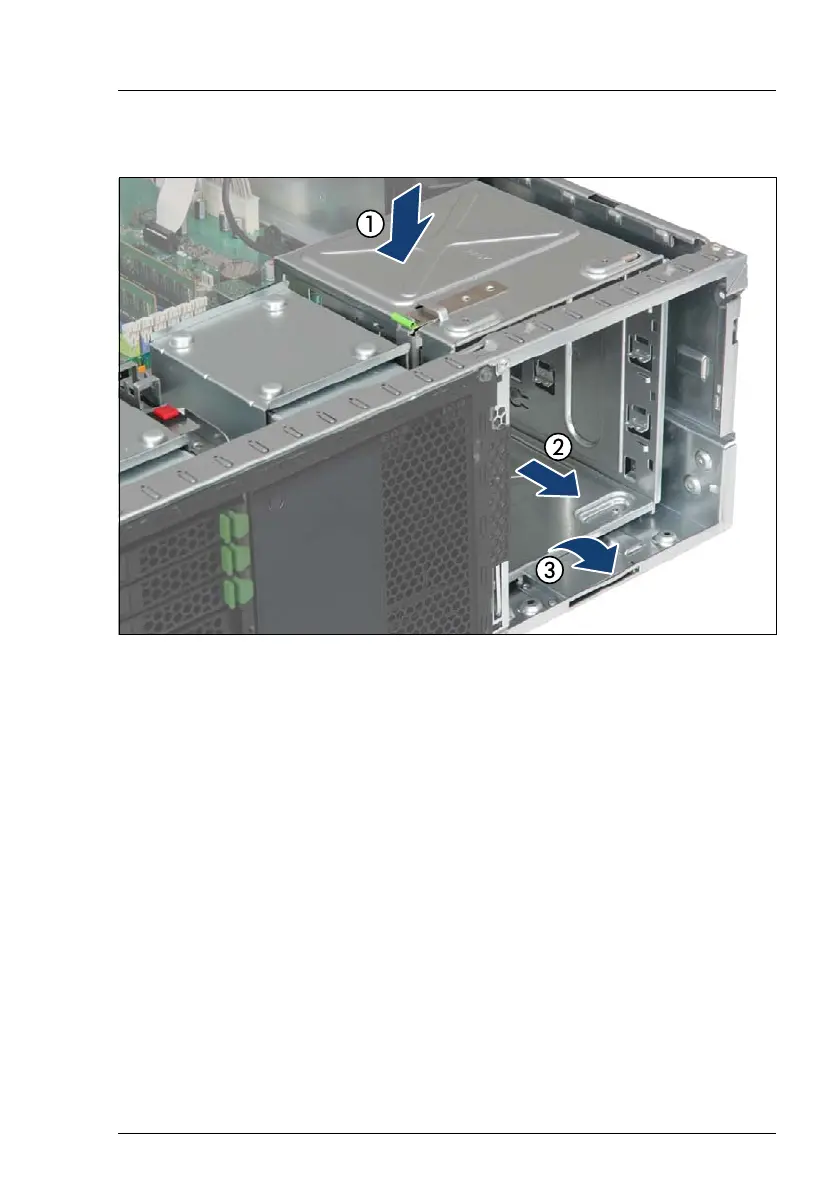

Figure 303: Mounting the accessible drive cage
Ê With its "RACK" stamping facing up , lower the accessible drive cage into the
chassis (1).
Ê Slide the accessible drive cage towards the server front as far as it will go
(2).
Ê Ensure that the front bottom edge on the accessible drive cover properly
engages in the slot in the chassis floor (3).
