398 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Converting a tower model to a rack model

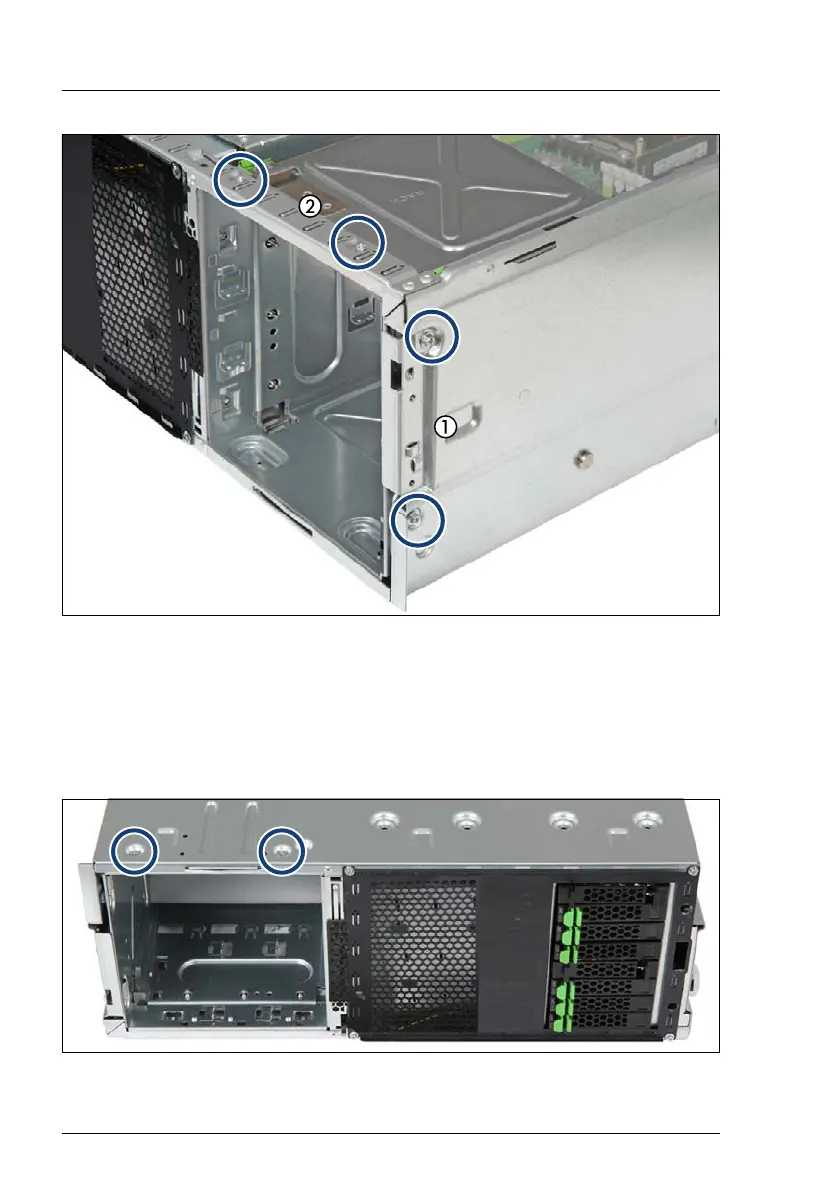

Figure 304: Securing the accessible drive cage (A)
Ê Secure the accessible drive cage with two screws (1).
Ê Secure the accessible drive cage with two screws (2).
Ê Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
Figure 305: Securing the accessible drive cage (B)
