HAIMA 7 - Page 572

33

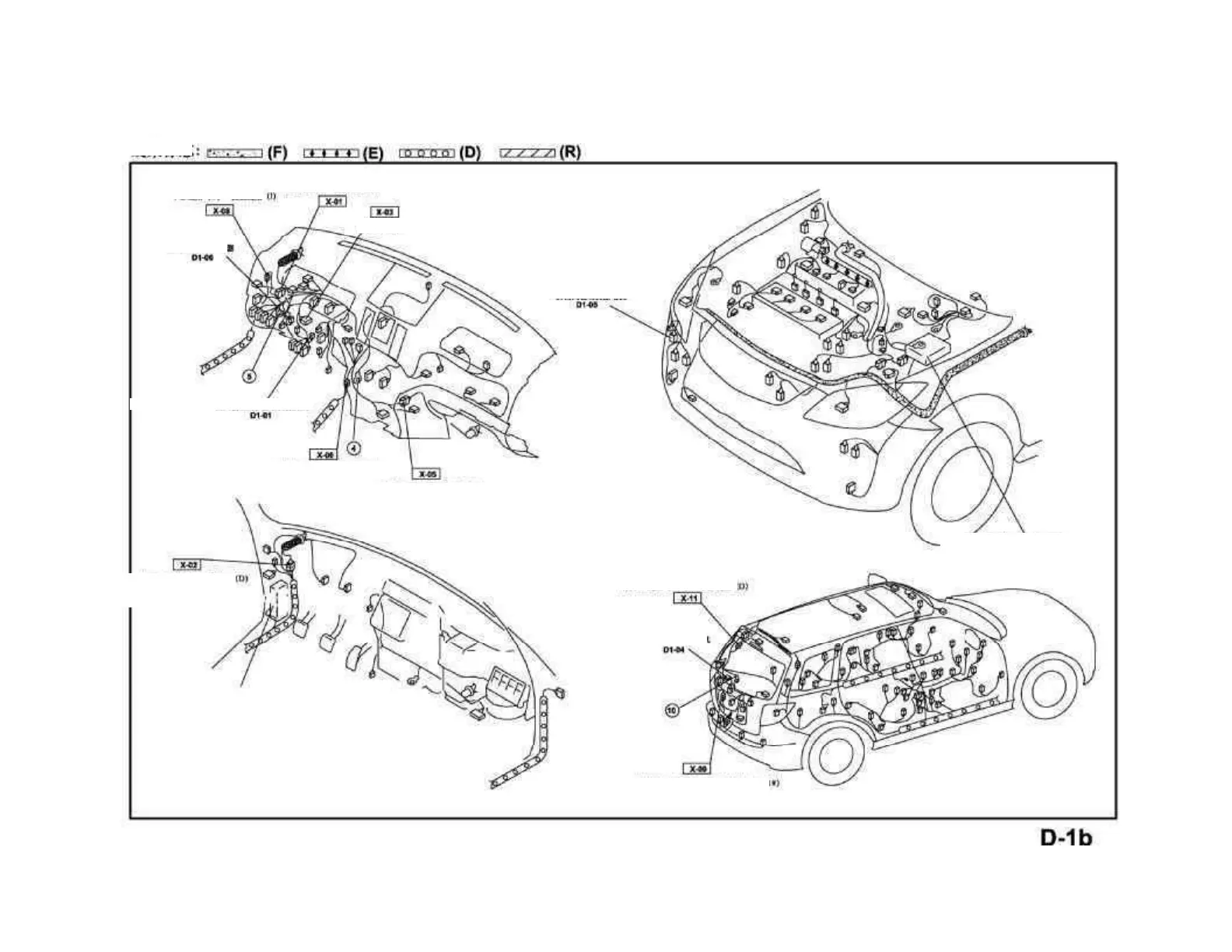

Mark on harness:
Junction box (see section JB)
Middle harness (D) - Instrument harness (I)
Fuse block (see section FB)
EM harness (EM) - Instrument harness (I)
Front harness (F) - Instrument harness (I)
Ignition switch
Middle harness (D) -
Instrument harness (I)
Front windshield washer motor
Rear windshield wiper motor
Front harness (F) -
Middle harness (D)
Windshield wiper and washer switch
Intermittent relay of
rear wiper
Liftgate (2#) harness (R2#)
- Middle harness (D)
Liftgate (2#) harness (R2#) -
Liftgate
(1#) harness (R1#)
