41

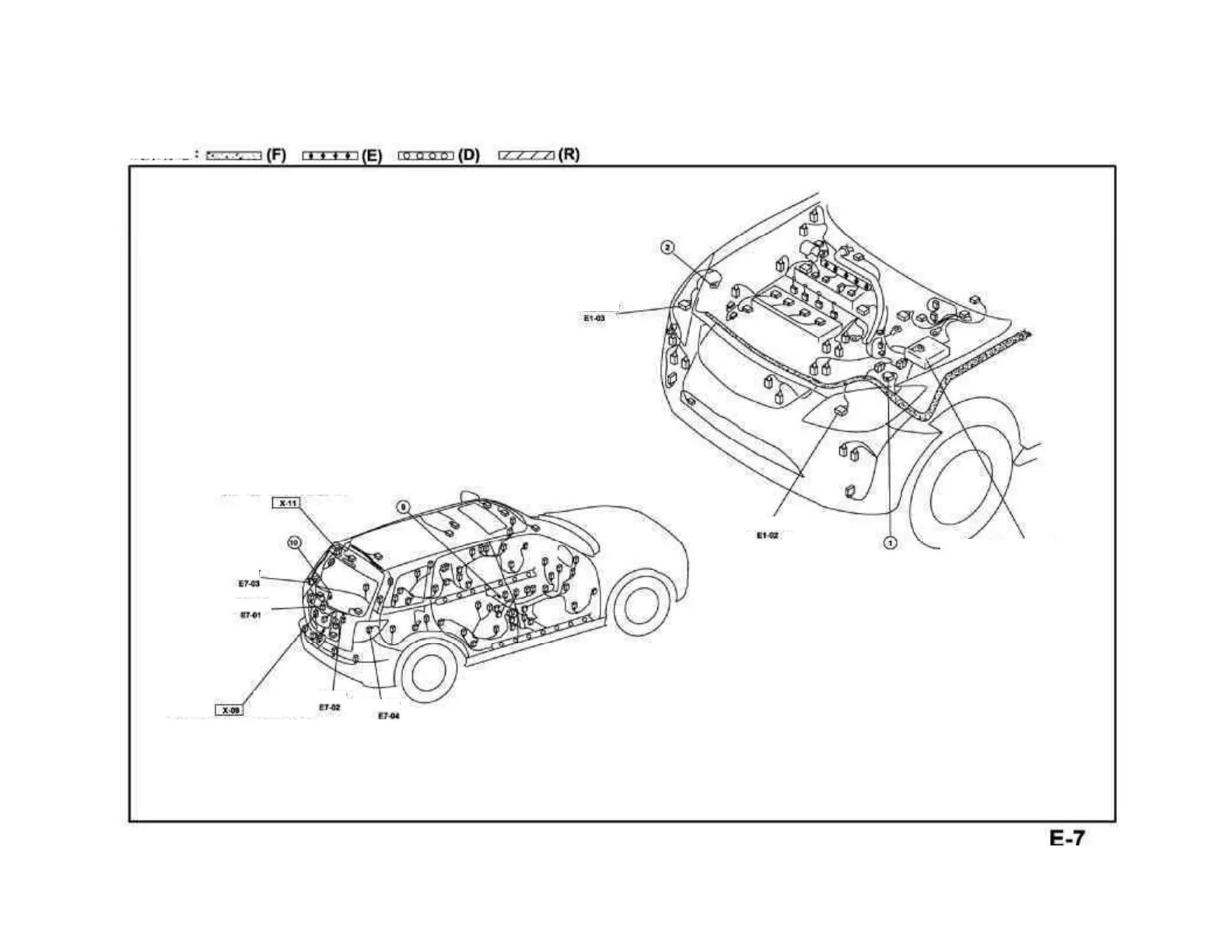

Mark on harness:
Liftgate 2# harness (R2#) -Middle harness (D)
Fuse block (see section FB)
Right taillight
Left taillight
Left license lamp
Right license lamp
Instrument harness (I)
-
Middle harness (D)
Liftgate 2# harness (R2#) - Liftgate 1# harness (R1#)
Right front position lamp
left front position lamp
