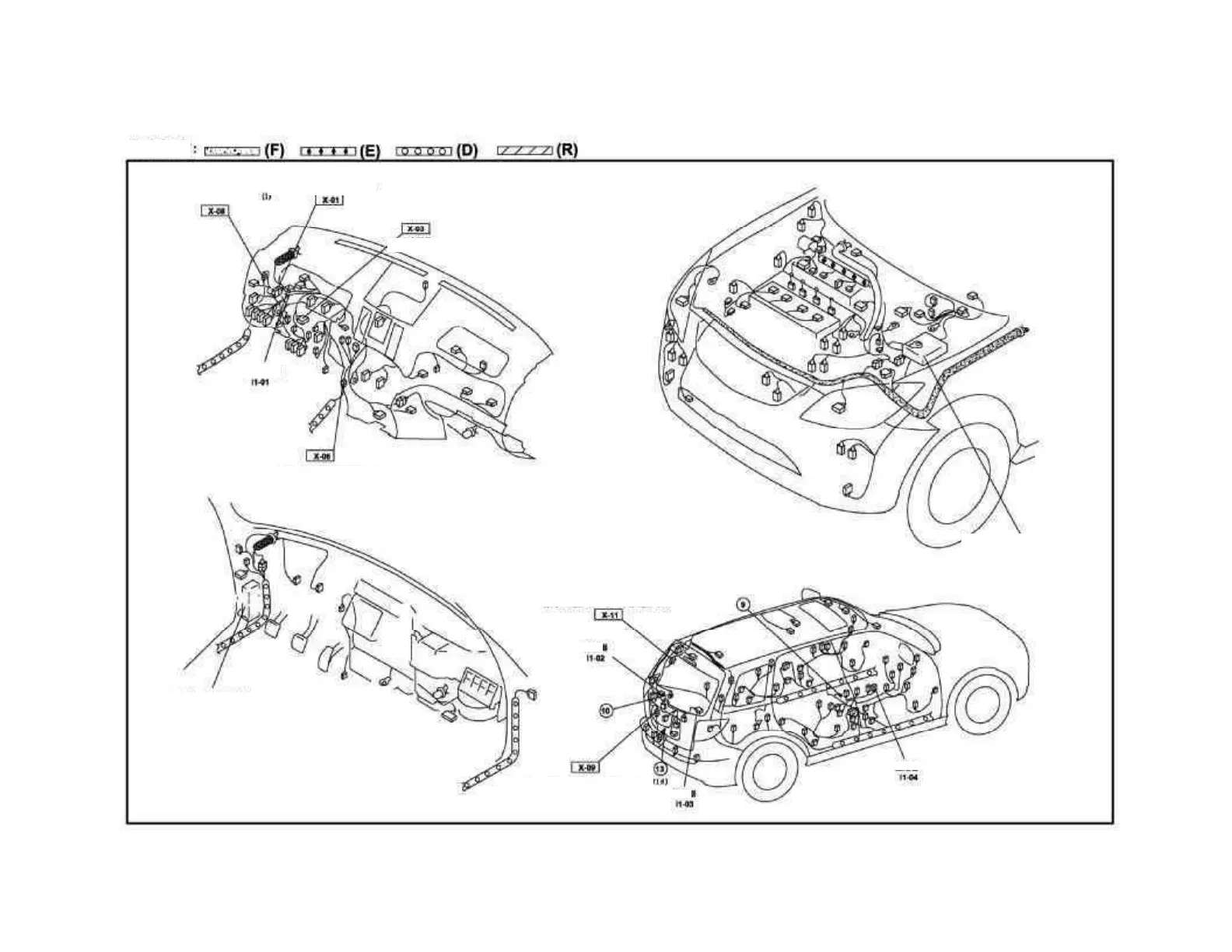

Mark on harness:
Middle harness (D) - Instrument harness (I)
Junction box (see section JB)
Fuse block (see section
Middle harness (D) -
Instrument harness (I)
Front harness (F) -
Instrument harness (I)
Ignition switch
Defrost relay
Cigarette lighter
Defroster
Defroster
Liftgate 2# harness (R2#) -Liftgate
1# harness (R1#)
Liftgate 2# harness (R2#) - Middle harness (D)
