HAIMA 7 - Page 614

75

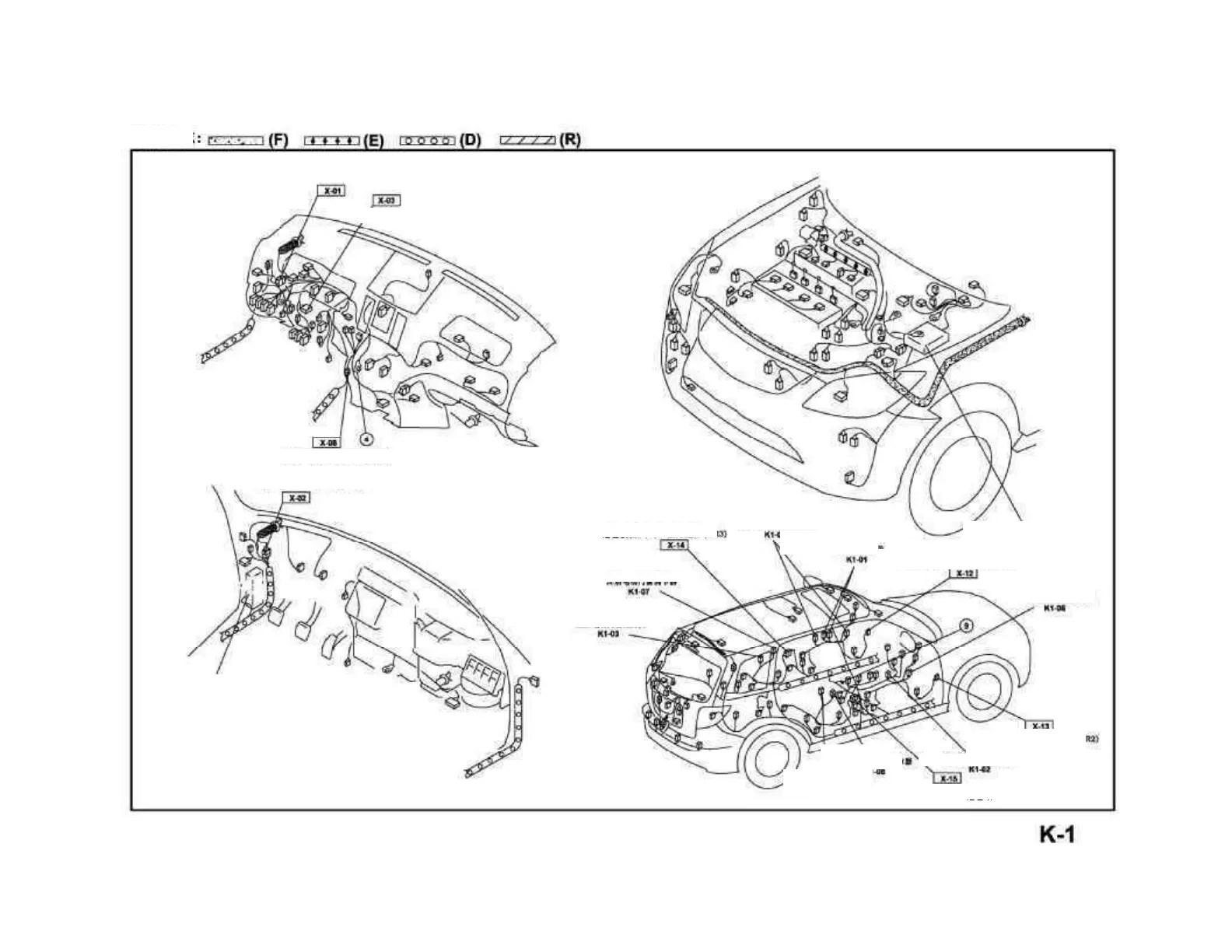

Mark on harness:
Ignition switch
Middle harness (D)-Instrument harness (I)
Fuse block (refer to FB
sections)
Junction box (refer to JB sections)
Front harness (F)-middle harness (D)
Front harness (F)-Instrument harness (I)
Middle harness (D)-rear door harness
(DR3)
Middle harness (D)-rear door harness
(DR4)
Middle harness (D)-
front
door harness (DR2)
Middle harness (D)-front door harness (DR1)
Rear left power window regulator
Auxiliary power window switch
of rear left door
Front left window regulator
Power door window
main switch
Front right power
window regulator
Auxiliary power window
switch of rear right door
K1-04
Rear right window
regulator
K1
-
08
Auxiliary power window switch of front right door
