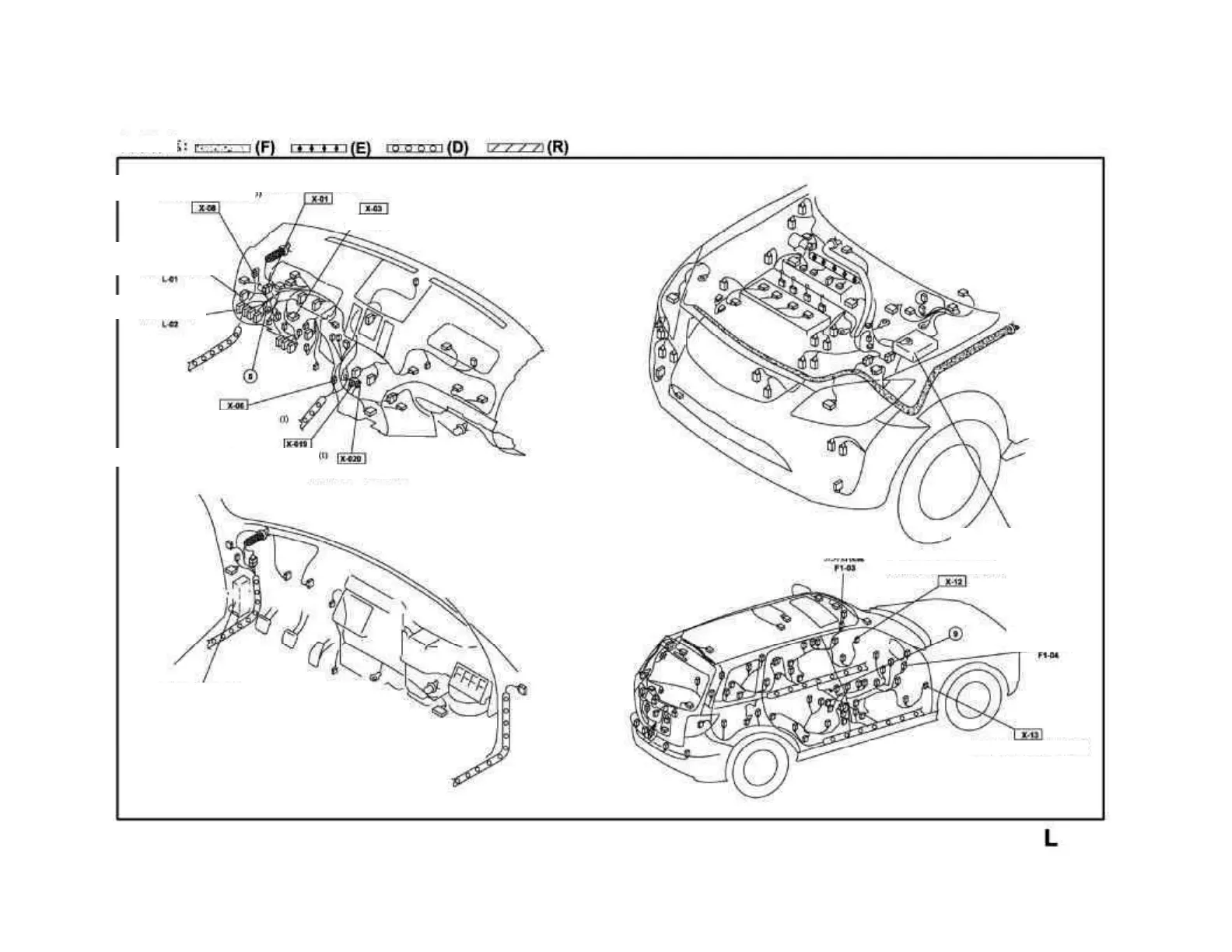

Front harness (F)-Instrument harness (I)
Ignition switch
Middle harness (D)-Instrument harness (I)
Middle harness (D)-Instrument harness (I)
Middle harness
(D)-Instrument harness (I)
Middle harness
(D)-Instrument harness (I)
Fuse block (refer to FB
sections)
Junction box (refer to JB sections)
Outside electric rear-
view mirror switch
Rear-view mirror
Left outside rear-view mirror
Middle harness (D)-front door harness (DR1)
Right outside
rear-view mirror
Middle harness (D)-front door harness (DR2)
