85

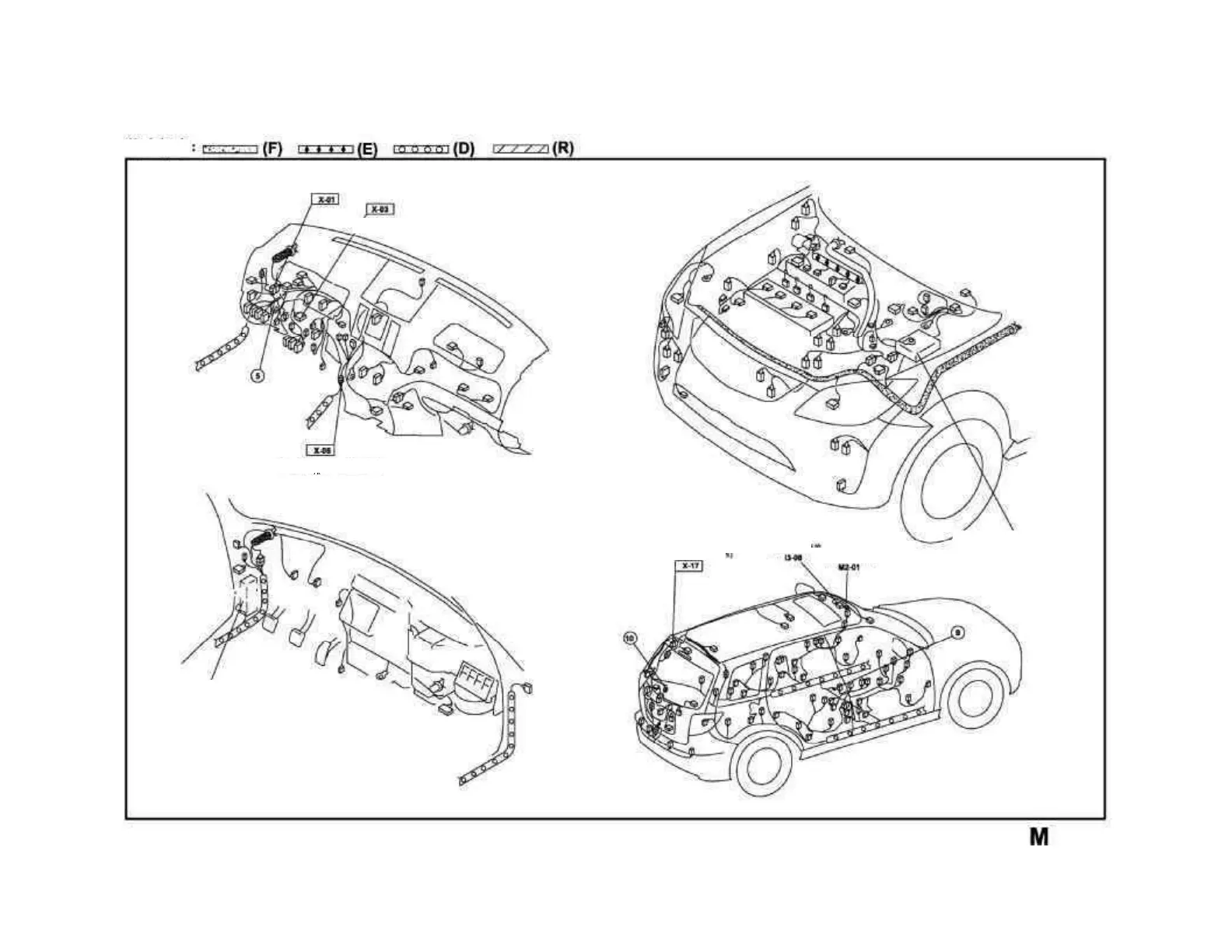

Mark on harness:
Fuse block (refer to FB
sections)
Junction box (refer to JB sections)
Ignition switch
Front harness (F)-Instrument harness (I)
Middle harness (D)-Instrument harness
(I)
Middle harness (D)-Interior harness (IN)
Sunroof switch
Sunroof motor
