HAIMA 7 - Page 625

86
Ignition
switch
Battery
Diagnostic
interface
Combination
instrument
Brake
switch
Combination instrument
ABS control unit
ABS control unit (F)
ABS wheel speed sensor
Left, front Left, rear Right, front Right, rear
ABS wheel speed sensor
(left, front) (EM)
ABS wheel speed sensor
(left, rear) (EM)
ABS wheel speed
sensor
(right, front) (EM)
ABS wheel speed sensor
(right, rear) (EM)

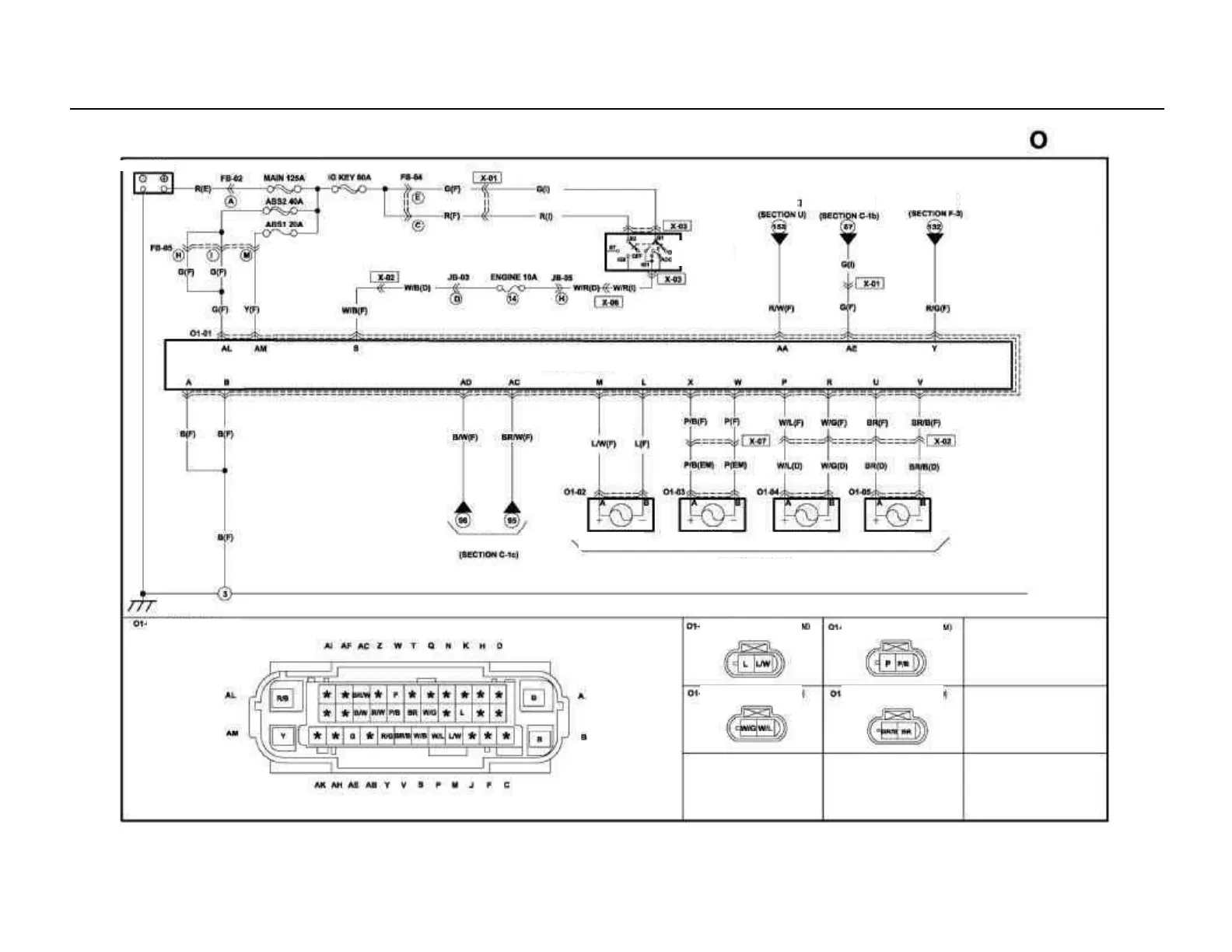

Anti-lock brake system
