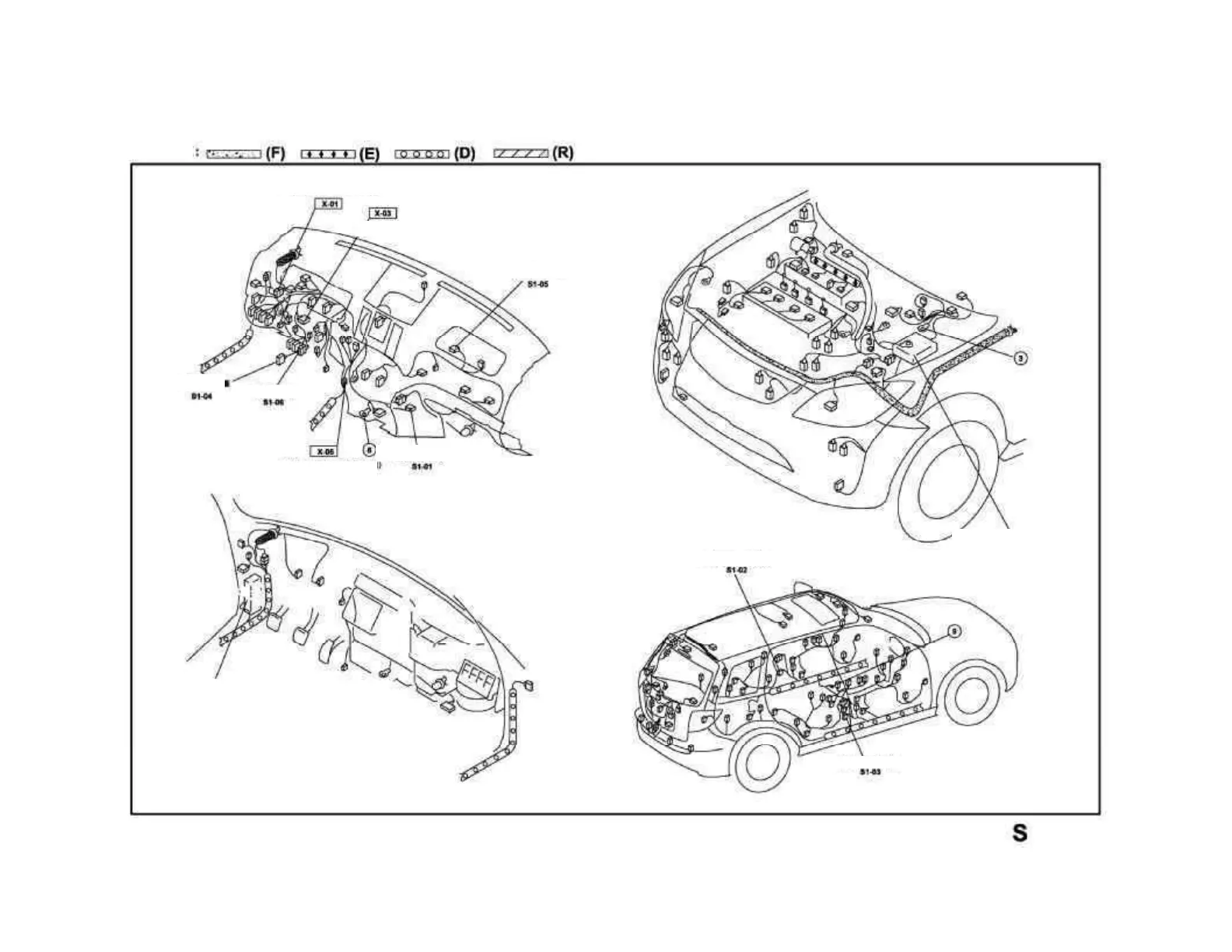

Mark on harness:
Middle harness (D)-Instrument harness (I)
Fuse block (refer to FB
sections)
Junction box (refer to JB sections)
Ignition switch
Airbag ECU
Driver’s seat belt pretensioning
Driver’s airbag
Passenger’s seat belt pretensioning
Passenger’s airbag
Clock spring
Front harness (F)-Instrument harness (I)
