93

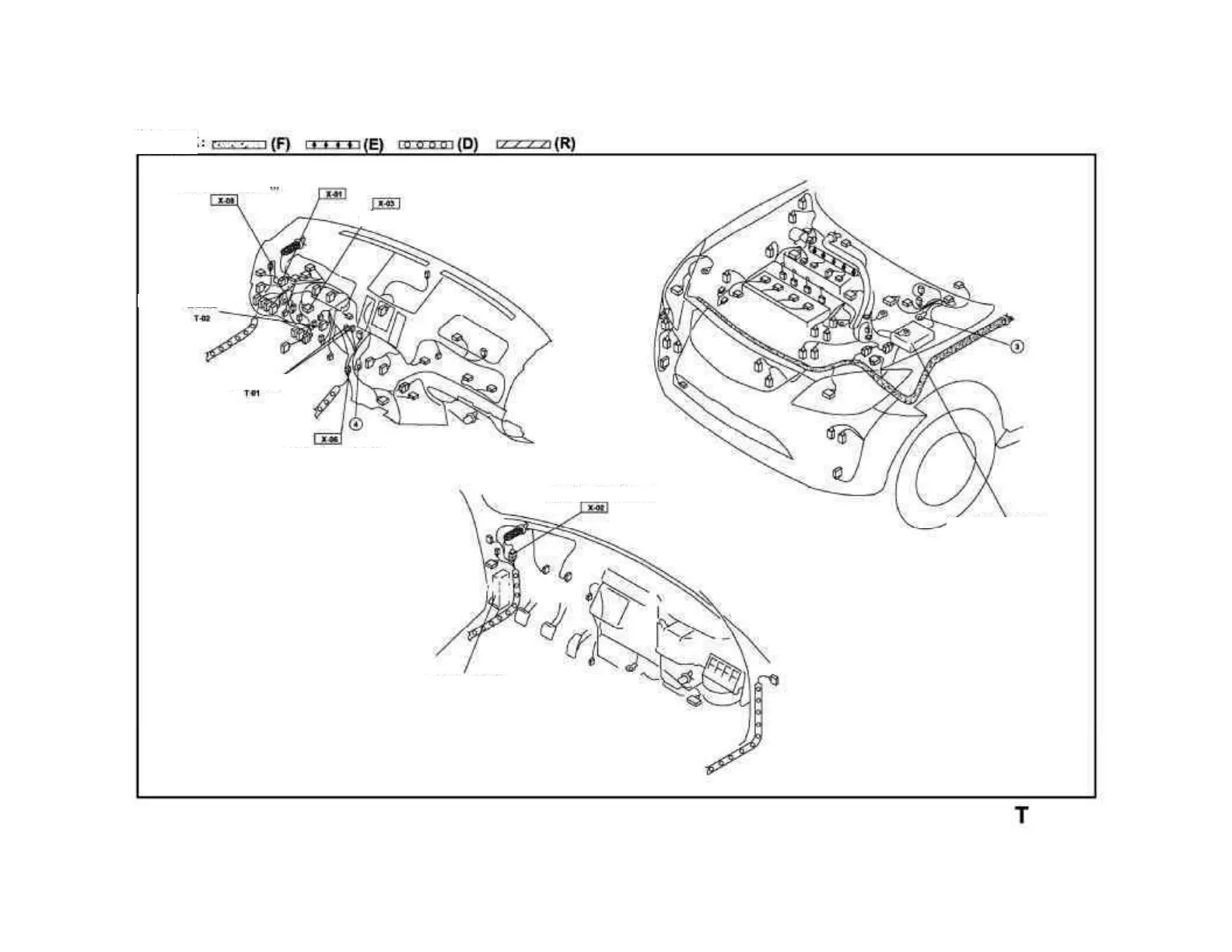

Mark on harness:
Middle harness (D)-Instrument harness (I)
Front harness (F)-Middle harness (D)
Fuse block (refer to FB
sections)
Junction box (refer to JB sections)
Middle harness (D)-
Instrument harness (I)
Front harness (F)-
Instrument harness (I)
Ignition switch
Anti-theft coil
Anti-theft control unit
