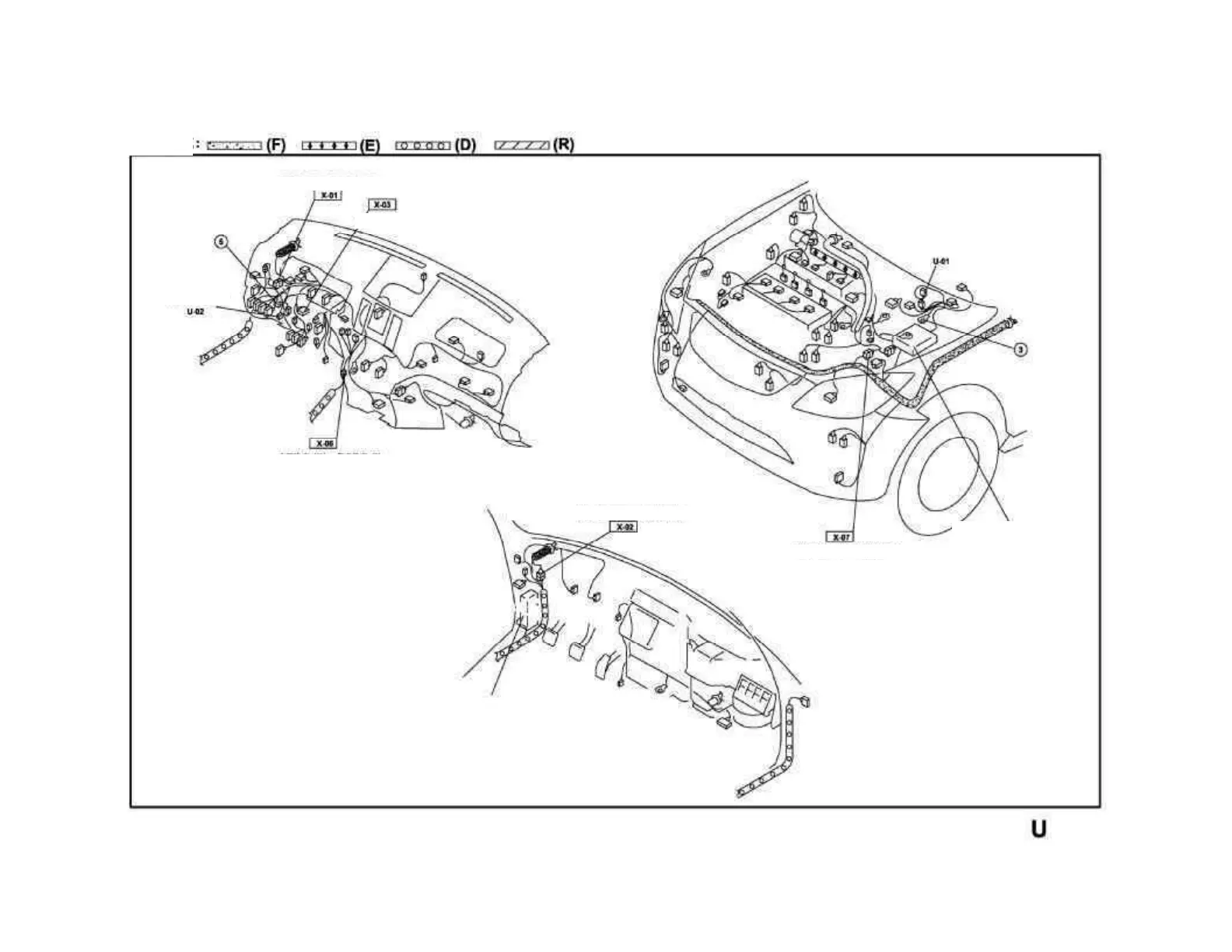

Mark on harness:
Middle harness (D)-Instrument harness (I)
Front harness (F)-Instrument harness (I)
Front harness (F)-Middle harness (D)
EM harness (EM)-Front harness (F)
Fuse block (refer to FB
sections)
Junction box (refer to JB sections)
Diagnostic interface (DLC)
Diagnostic
interface (DLC)
Ignition switch
