Designjet Z Series — Service Manual 3-23
Service Tests (Diagnostics)

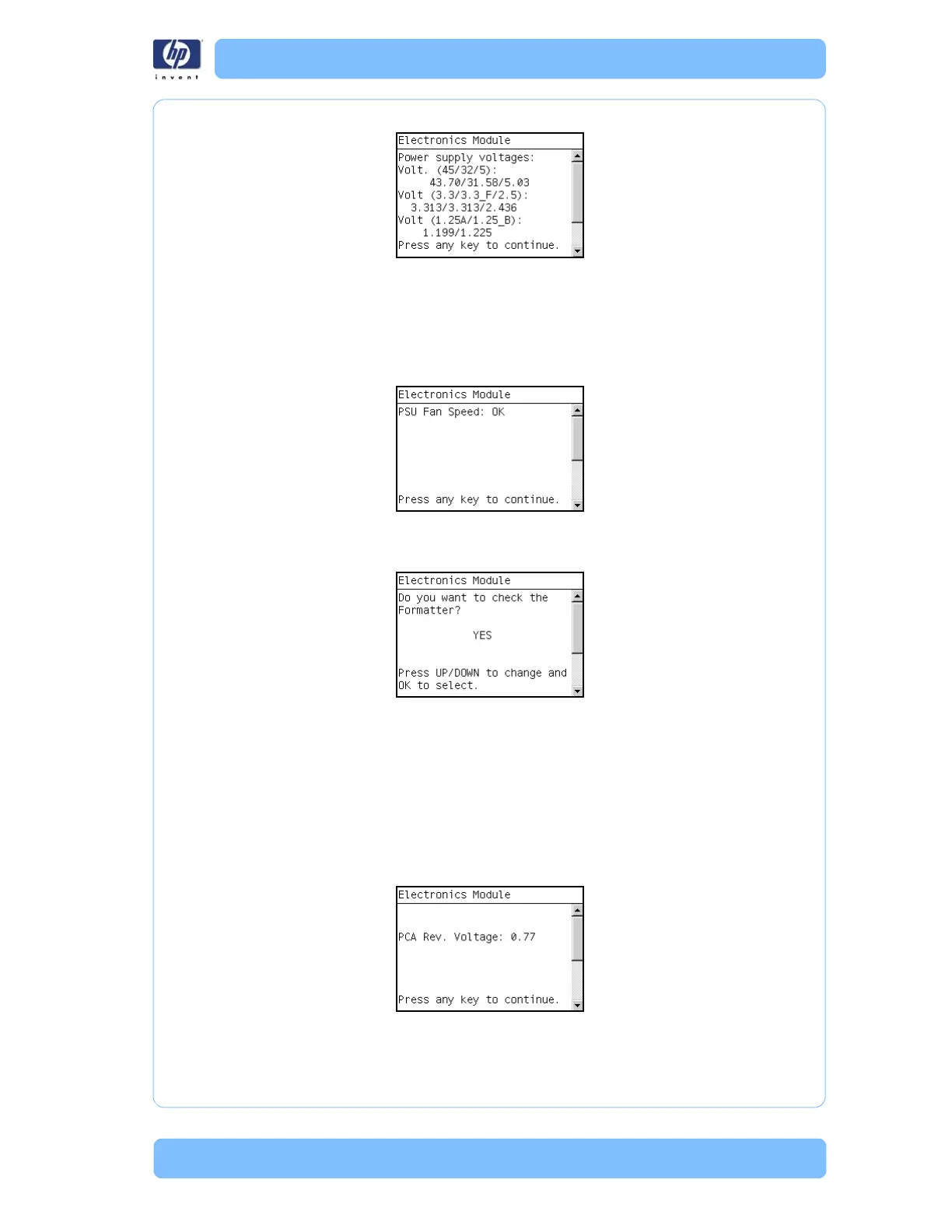

6 The Front Panel then displays the Power Supply test results.
7 Press any key to continue.
8 The Fan Speed test starts and the Front Panel displays:
Getting PSU Fan Rotation
9 The Front Panel then displays the Fan Speed test result and prompts you to
press any key to continue.
10 Press any key to continue.
11 The Front Panel then prompts you to test the Formatter.
12 Press OK to the test the Formatter. If you do not wish to test the Formatter use
the Arrow keys to select NO and press OK.
13 The Formatter voltage test starts and the Front Panel displays the following
messages:
Starting DelSol1.
Getting PCA revision.
14 The Front Panel then displays PCA Rev. Voltage test result and prompts you to
press any key to continue.
15 Press any key to continue.
16 The Formatter memory size test starts and the Front Panel displays the
following messages:
