HP DesignJet Z2100

Service Tests and Utilities
3-34 Designjet Z Series — Service Manual

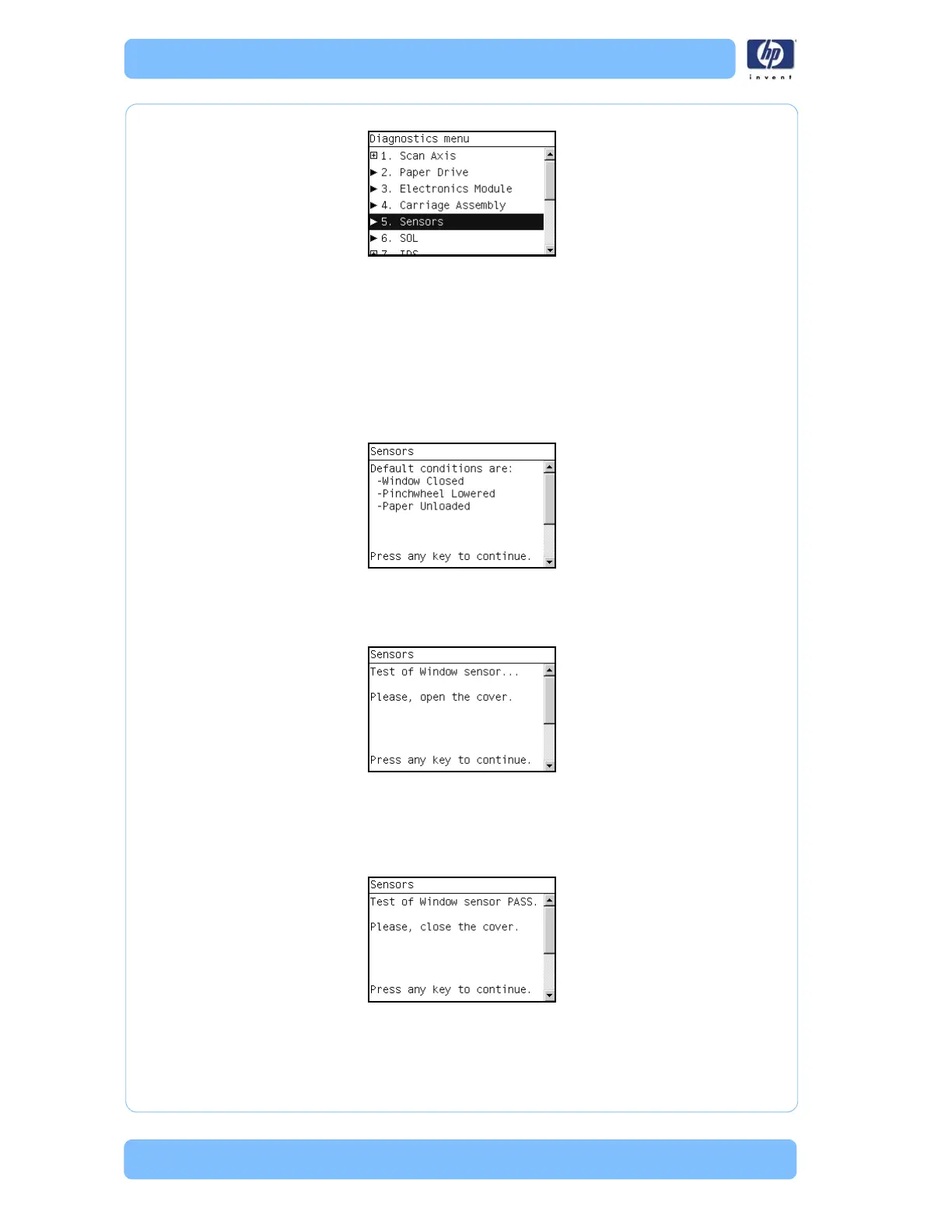

1 In the Diagnostics menu, scroll to 5. Sensors and press OK.
2 The Sensors test starts and the Front Panel then displays the following
messages:
 Starting Horsburgh and Mips
 Starting Nvm
 Starting Tests GPIO
 Getting part number
3 The Sensors test starts and the Front Panel prompts you to verify default
sensor positions:
4 Verify that the sensors are in the default positions and any key to continue.
5 The Window sensor test starts and the Front Panel prompts you to open the
Window:
6 Open the Window.
7 Press any key to continue.
8 The Window sensor test continues and the Front Panel prompts you to close
the Window:
9 Close the Window.
10 Press any key to continue.
