Designjet Z Series — Service Manual 3-63
Service Utilities

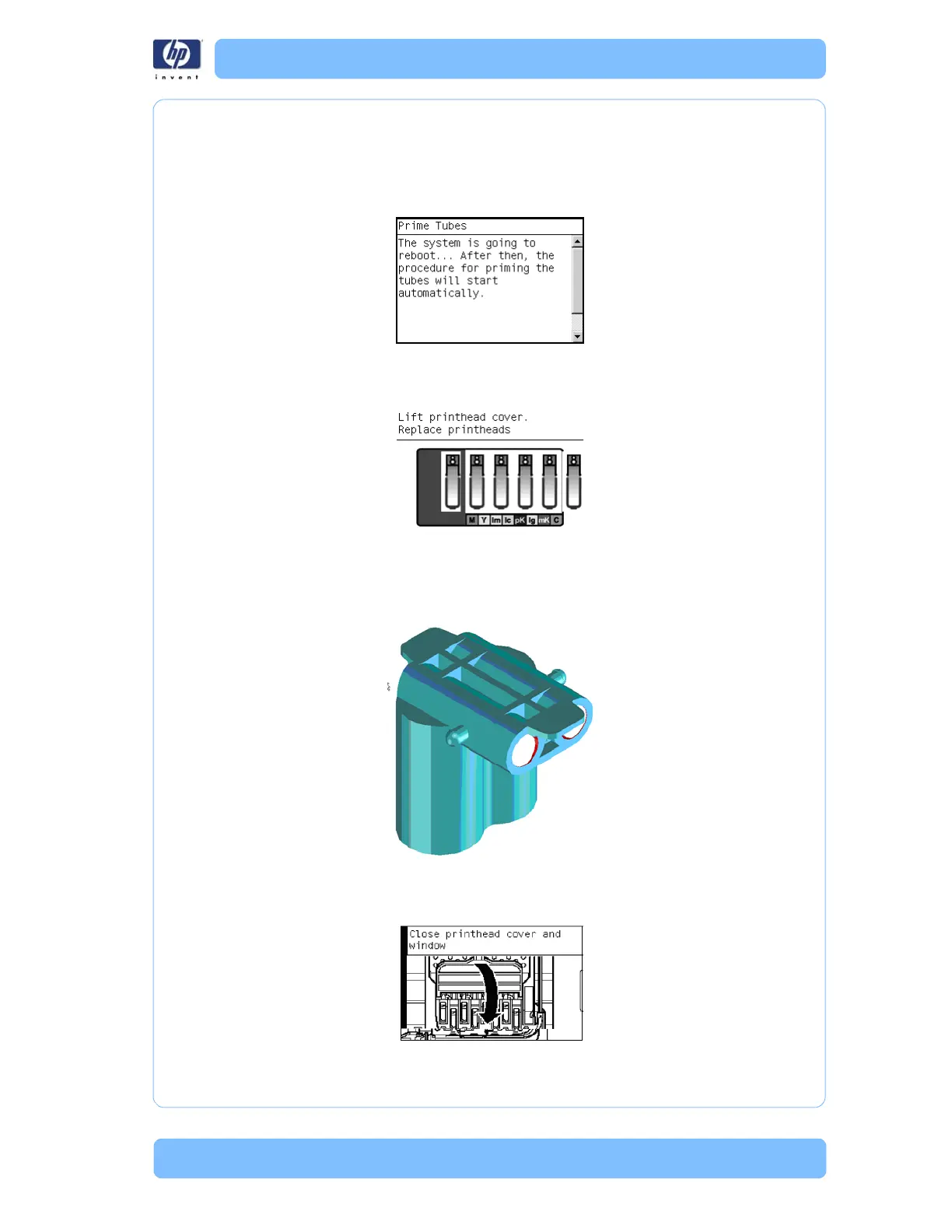

2 When the front panel prompts you to reboot the system, you must select
whether you would like to continue with the procedure by pressing the Enter
key, in which case the Printer will reboot. Press Back or Cancel to exit the
procedure at this point.
3 The Front Panel displays a message to say the Printer is going to reboot.
4 Once the Printer has rebooted, the Front Panel will instruct you to open the
Window and remove ALL the Printheads installed in the Carriage.
5 Once ALL the Printheads have been removed, the Front Panel will instruct you
to install the Setup Printheads into the Carriage
.
6
Install the Setup Printheads in the carriage.
7 Once all the Setup Printheads are installed, the following message will
appear on the front panel. Close the carriage cover and close the window.
8 The printer will begin to purge the tubes system.
To Next Page
