6-14 Designjet Z Series — Service Manual
Removal and Installation

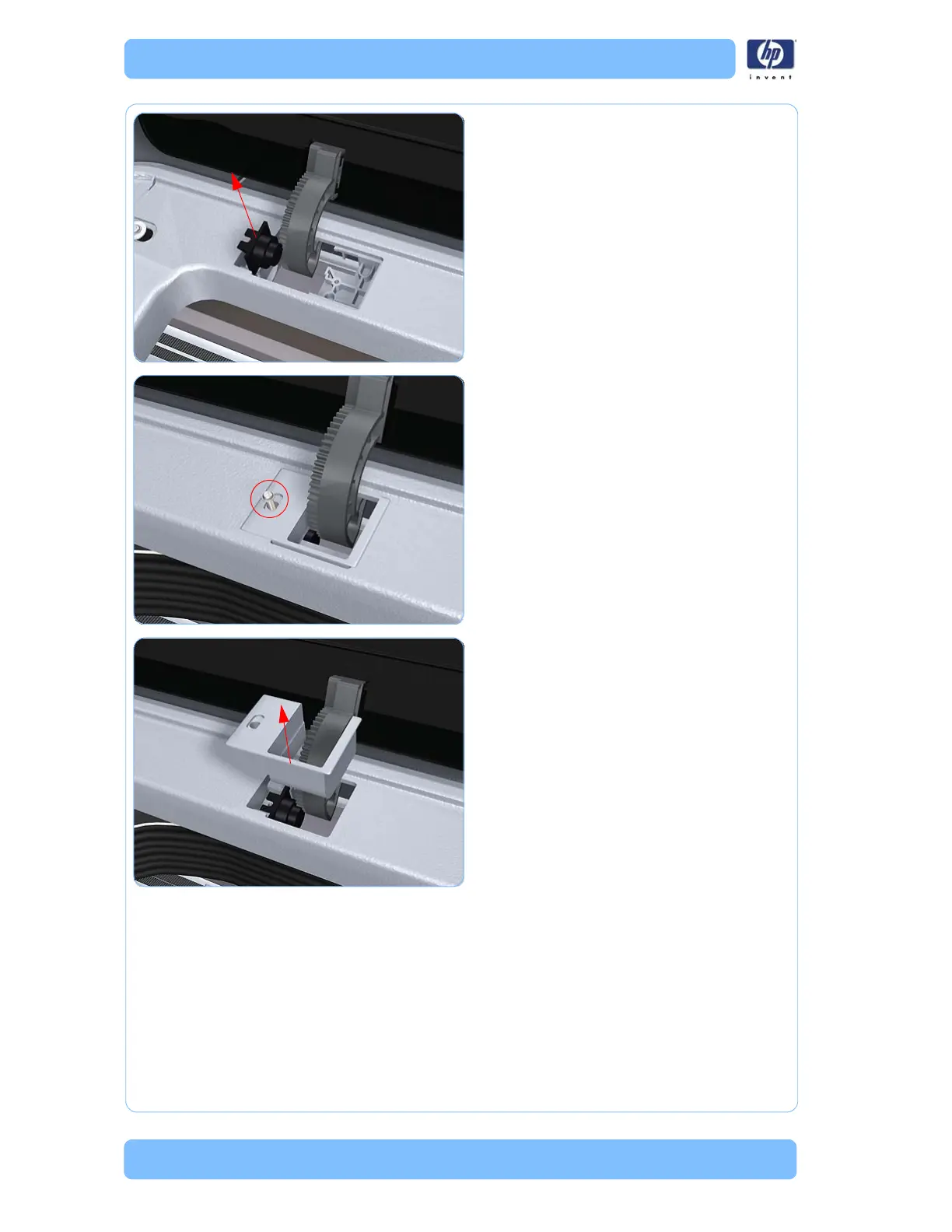

4. Remove the Damper Rotary from the Top
Cover.
5. Remove the T-15 screws that secure each of
the remaining three Window hinge locking
plates to the Top Cover.
6. Remove the remaining three Window
hinge locking plates from the Top Cover.
