Designjet Z Series — Service Manual 6-15
Removal and Installation - Window

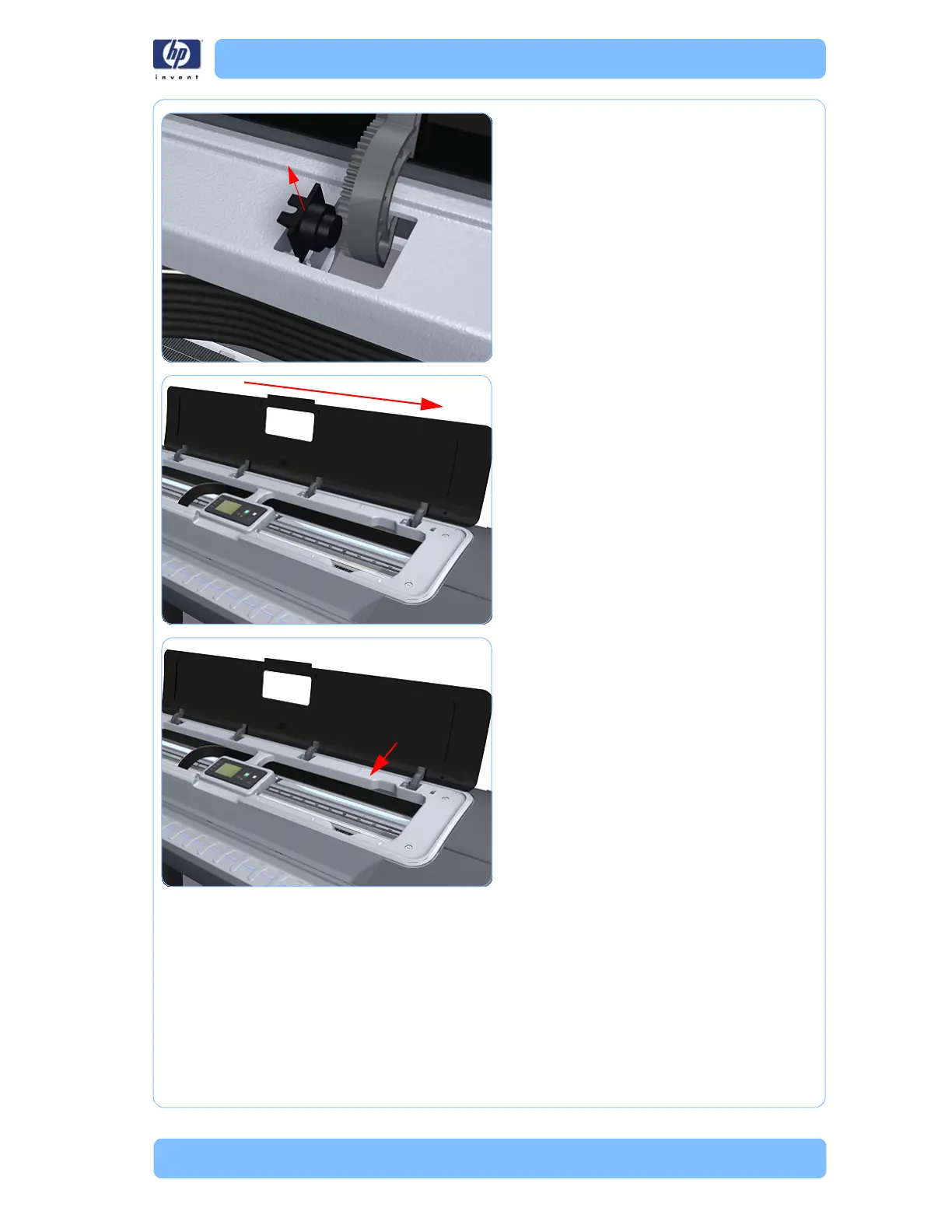

7. Remove the remaining three Damper
Rotary pieces from the Top Cover.
8. Grip the Window at the left and right
edges and move it horizontally towards the
right as far as it will go.
9. Pull the Window towards the front to
disengage the hinges.
