Removal and Installation - Extra High PRS Wedge

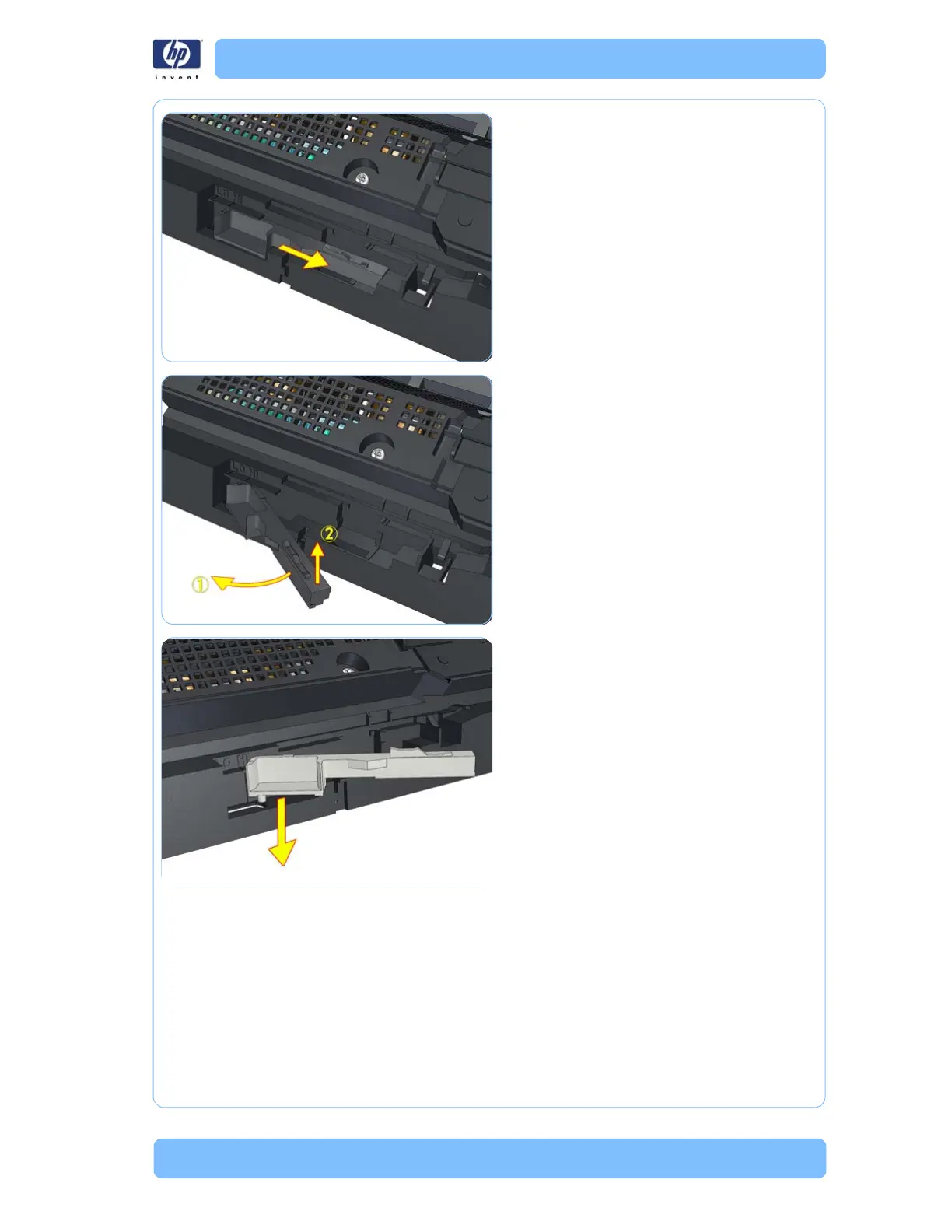

7. Slide the 2 Levels Wedge to the right
position.
8. Rotate the 2 Levels Wedge and remove it
from the carriage.
9. Install the new 2 Levels Wedge, taking
care to fit it properly to the carriage.
