6-140 Designjet Z Series — Service Manual
Removal and Installation

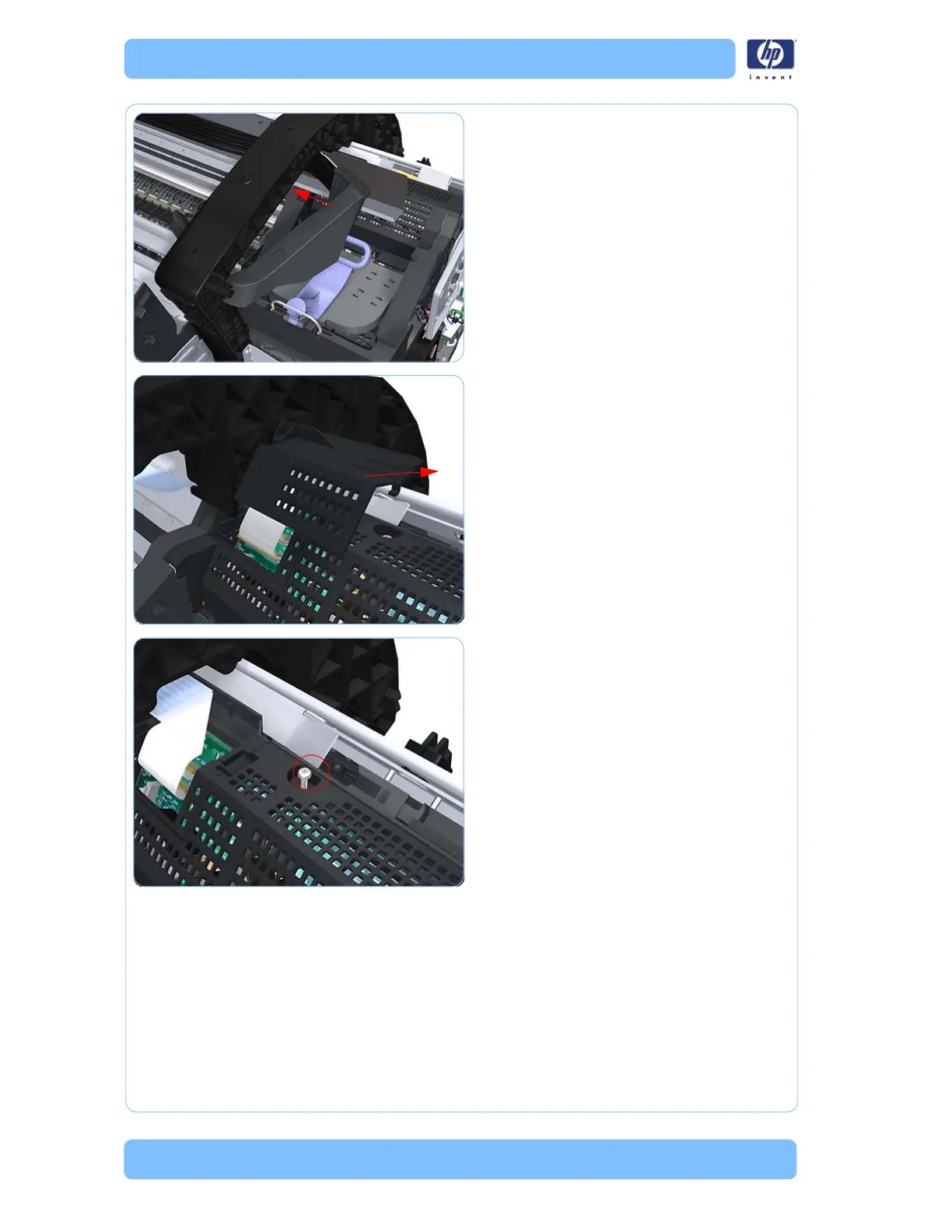

12. Carefully move the Ink Supply Tubes into
the print path.
13. Unclip and slide off the small cover of the
Carriage Assembly Carriage PCA.
14. Remove one T-15 screws that secures the
large cover of the Carriage PCA.
