6-188 Designjet Z Series — Service Manual
Removal and Installation

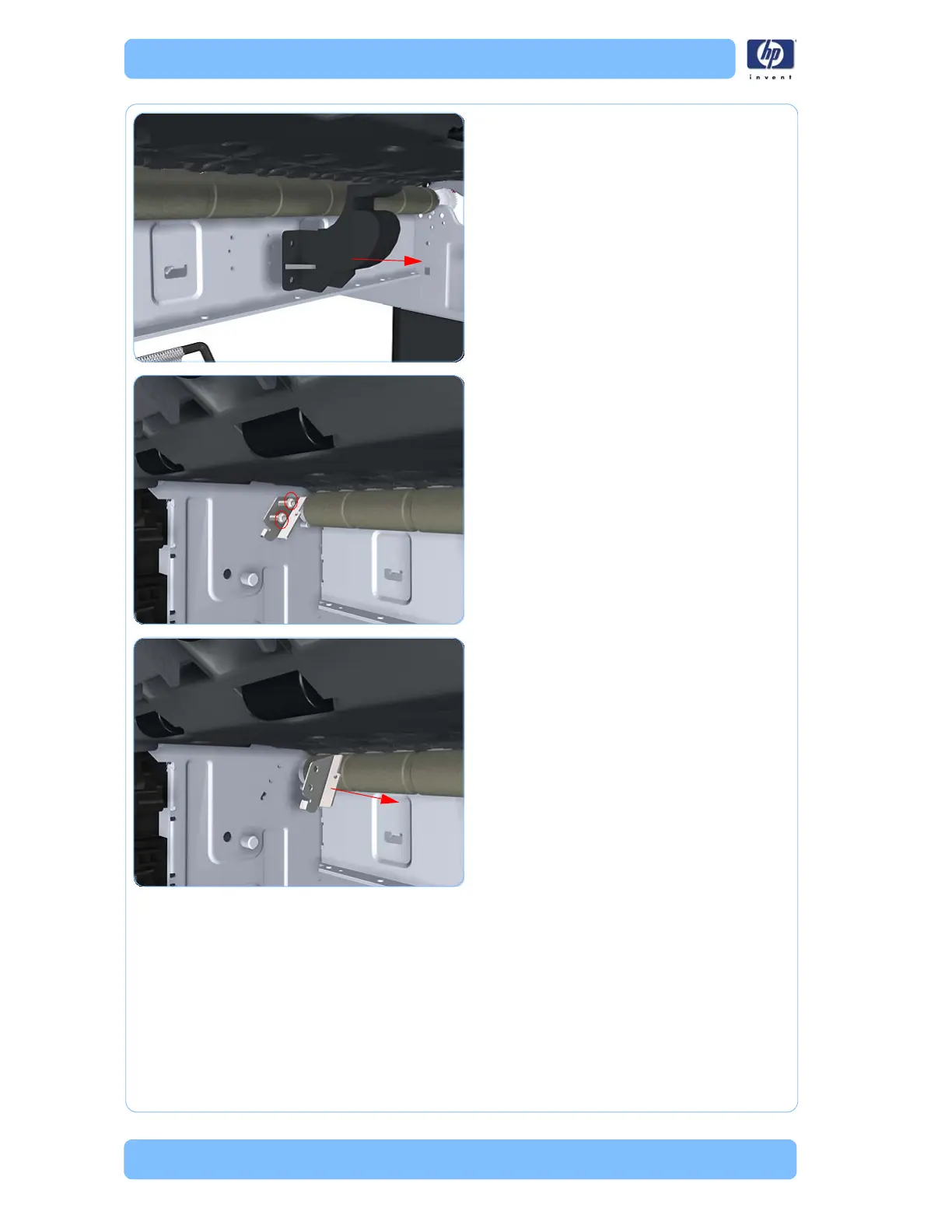

11 . Remove the Media Advance Roller right
support from the printer.
12. Repeat steps 12 and 13 for the Media
Advance Roller left support.
13. Remove two T-15 screws that secure the
Media Advance Roller left locking plate
(viewed from the rear of the printer).
14. Remove the Media Advance Roller left
locking plate (viewed from the rear of the
printer).
