6-190 Designjet Z Series — Service Manual
Removal and Installation

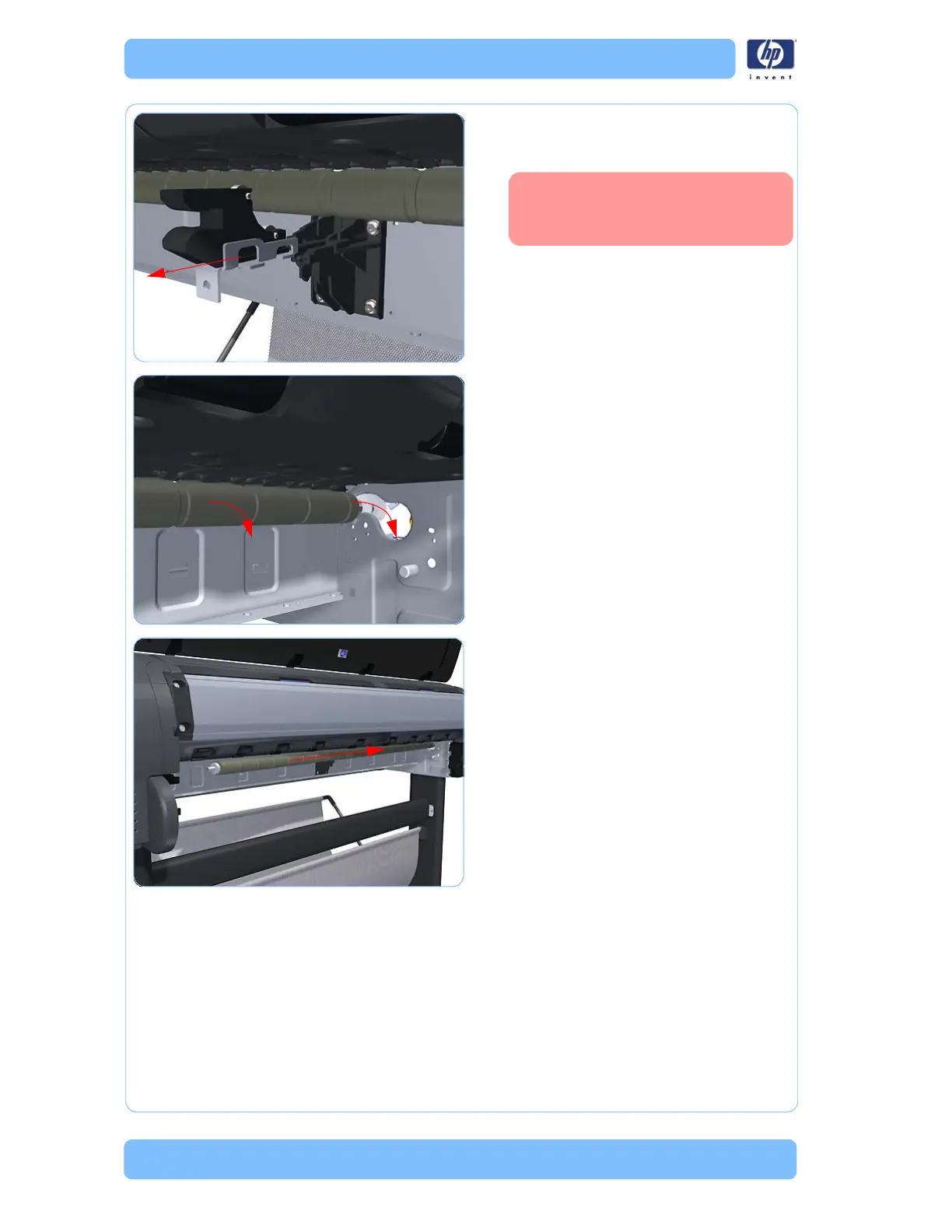

18. With firm pressure, remove the Media
Advance Roller center support locking
plate.
19. Slide the Media Advance Roller into
removal position.
20.Slide the Media Advance Roller towards
the right (viewed from the rear of the
printer) until you can disengage the left
end (viewed from the rear of the printer).
You will need to use extra
force to remove the center
support locking plate.
Rear Tray with tray extensions shown.
