Designjet Z Series — Service Manual 6-191
Removal and Installation - Media Advance Roller

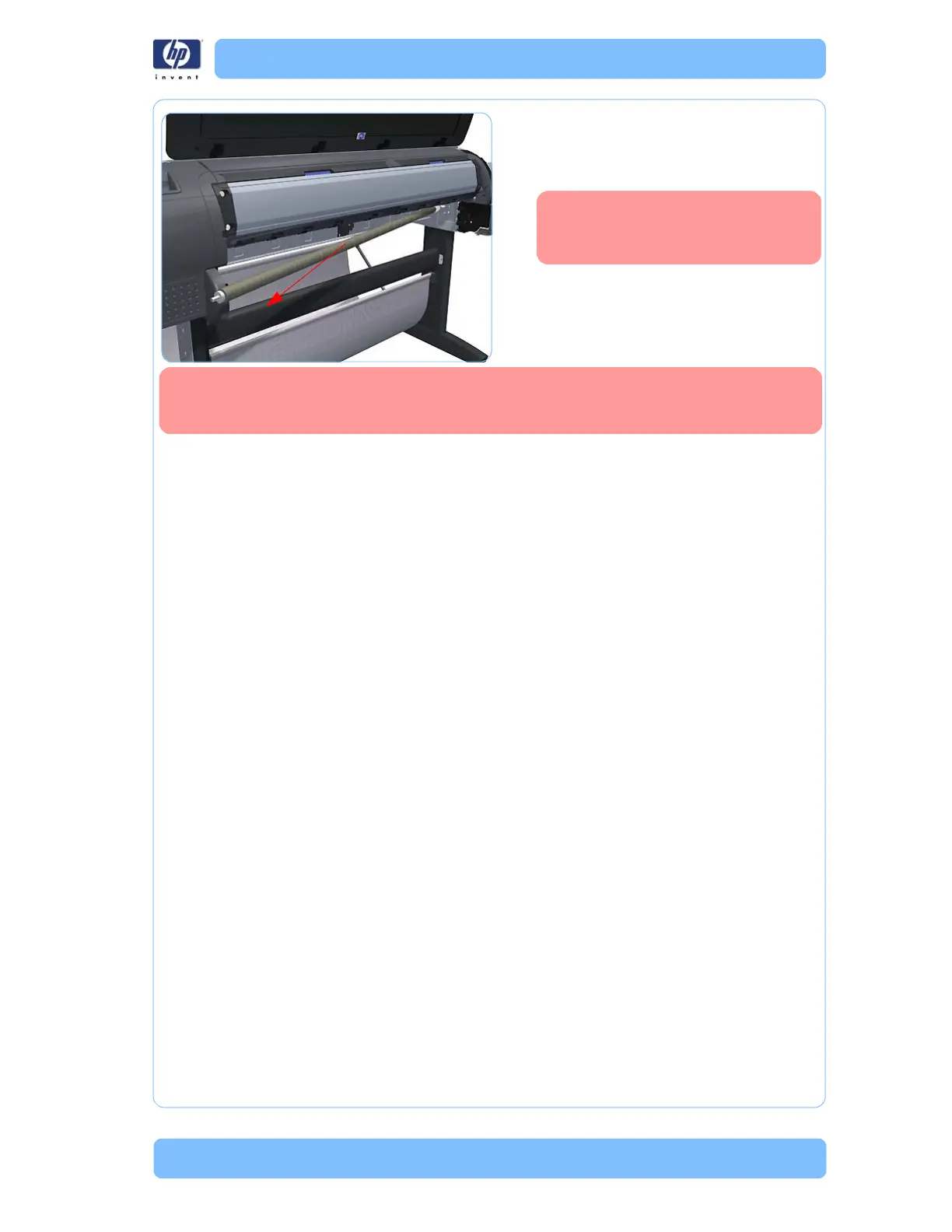

21. Slide the Media Advance Roller towards
the left to disengage the left end and
remove the Media Advance Roller from the
printer.
Rear Tray with tray extensions shown.
Do not let the Media Advance
Roller touch any surfaces,
particularly metallic surfaces.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
Refer to page 6-8,
Service Calibration Guide to Removal and Installation
.
