6-196 Designjet Z Series — Service Manual
Removal and Installation

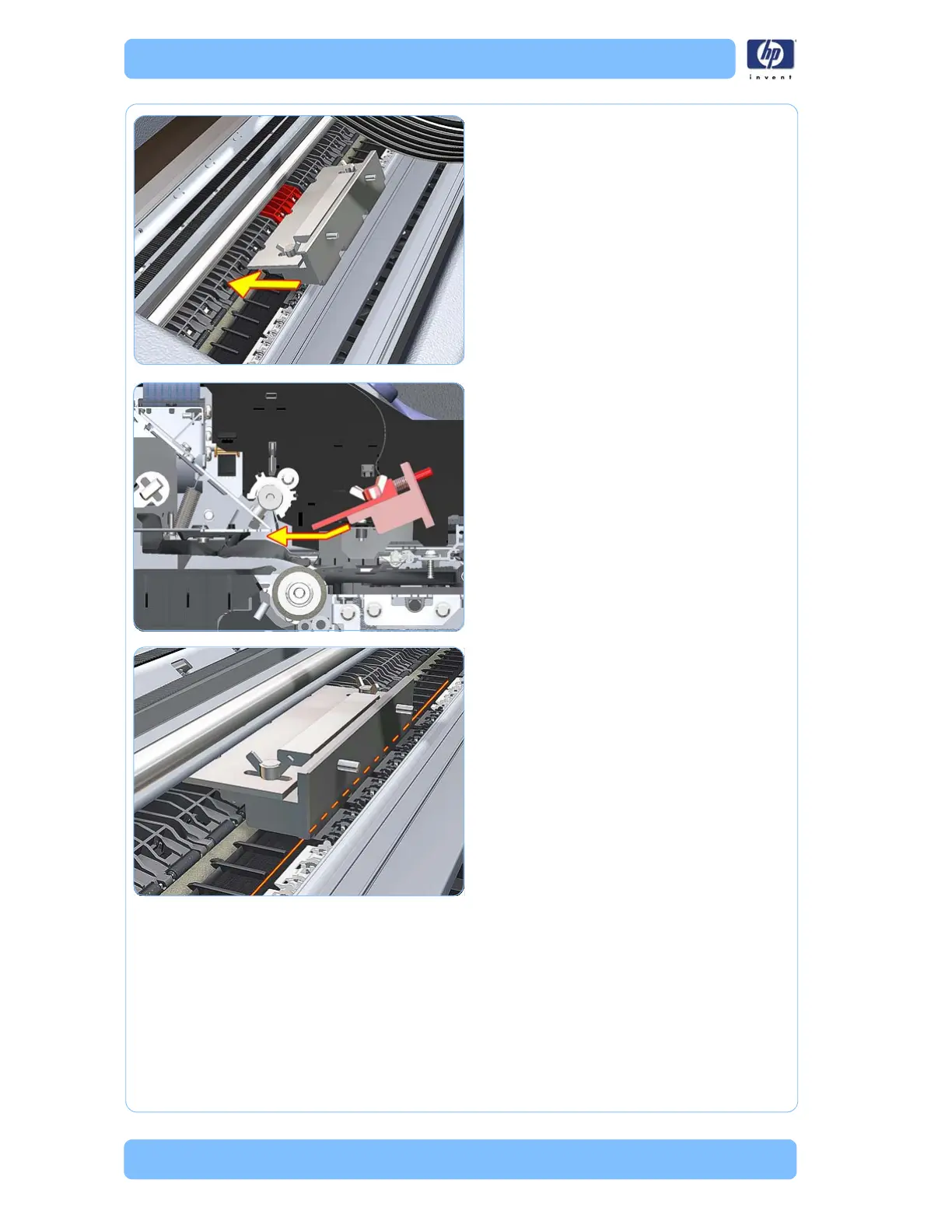

8. Fit the end of the Pinchwheel Alignment
Tool to the Pinchwheel Assembly you need
to align.
Alternate view, Step 8
9. Set the Pinchwheel Alignment Tool on the
print platen. The tool should fit like it does
in the graphics shown.
