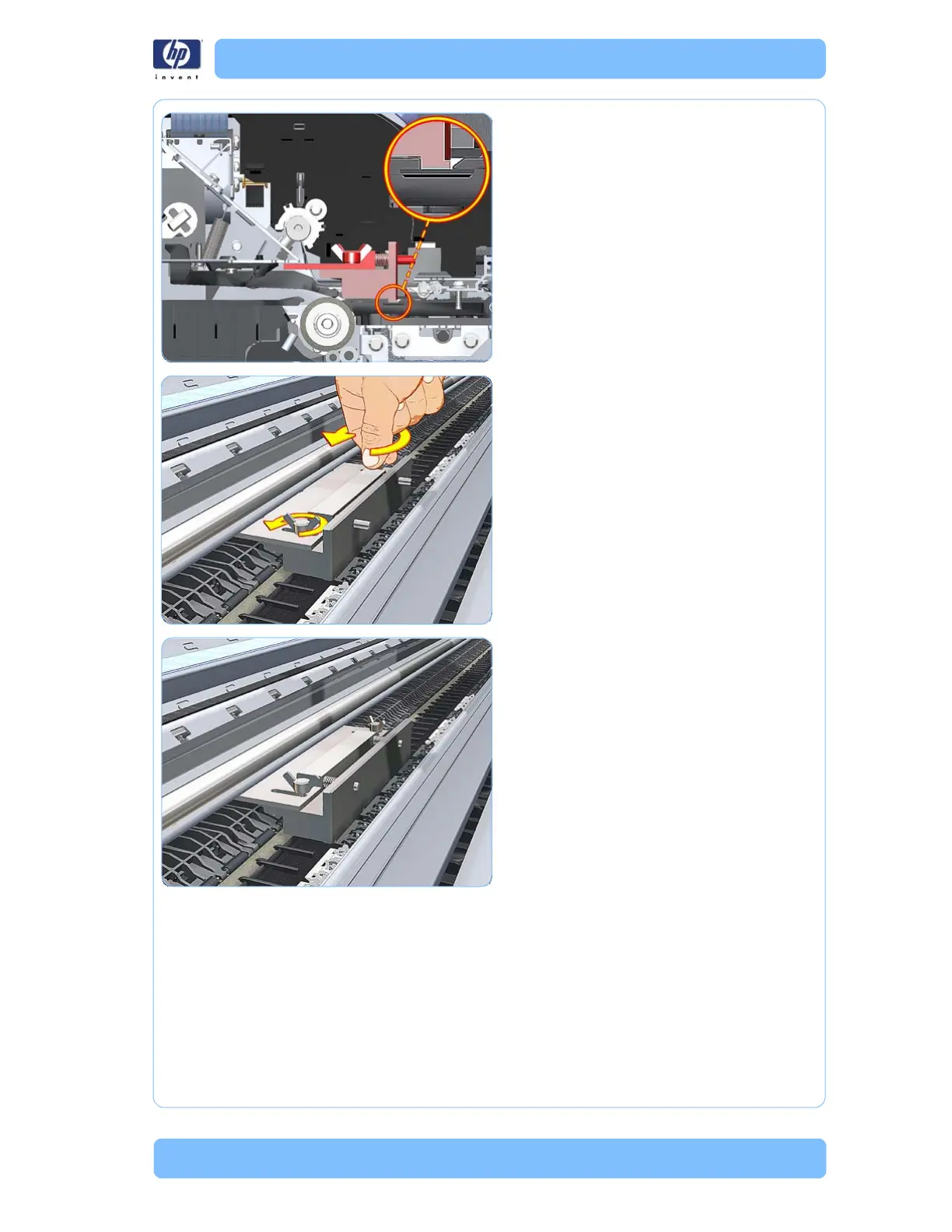

Designjet Z SeriesService Manual 6-197
Removal and Installation - Pinchwheel Assembly
Alternate view, Step 9
10. Loosen the wing nuts on the Pinchwheel
Alignment Tool.
11 . Allow the Pinchwheel Alignment Tool to
expand. Make sure that the tool is fully
expanded.
