6-202 Designjet Z Series — Service Manual
Removal and Installation

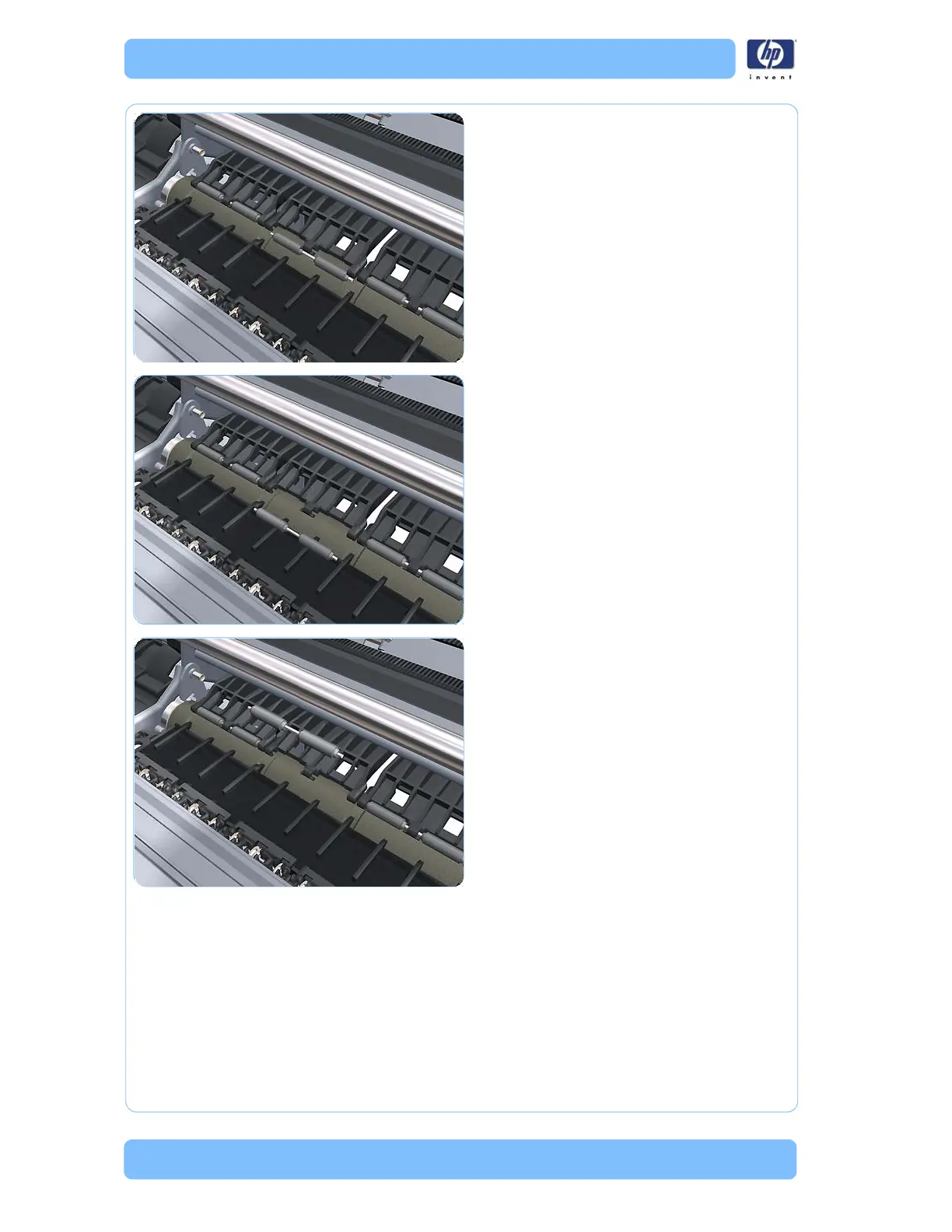

4. With the Plastic Tie in place, apply
downward pressure on the Pinch Roller (do
not apply pressure to the Pinchwheel
Assembly) with two fingers until you hear a
"click." Apply pressure close to the center
of the Pinch Roller to avoid bending the
metal shaft.
5. When the Pinch Roller is fully released,
remove it from the printer.
6. Take two new pinch rollers and fit them
onto a Pinch Roller metal shaft.
