214323 98 Revision A

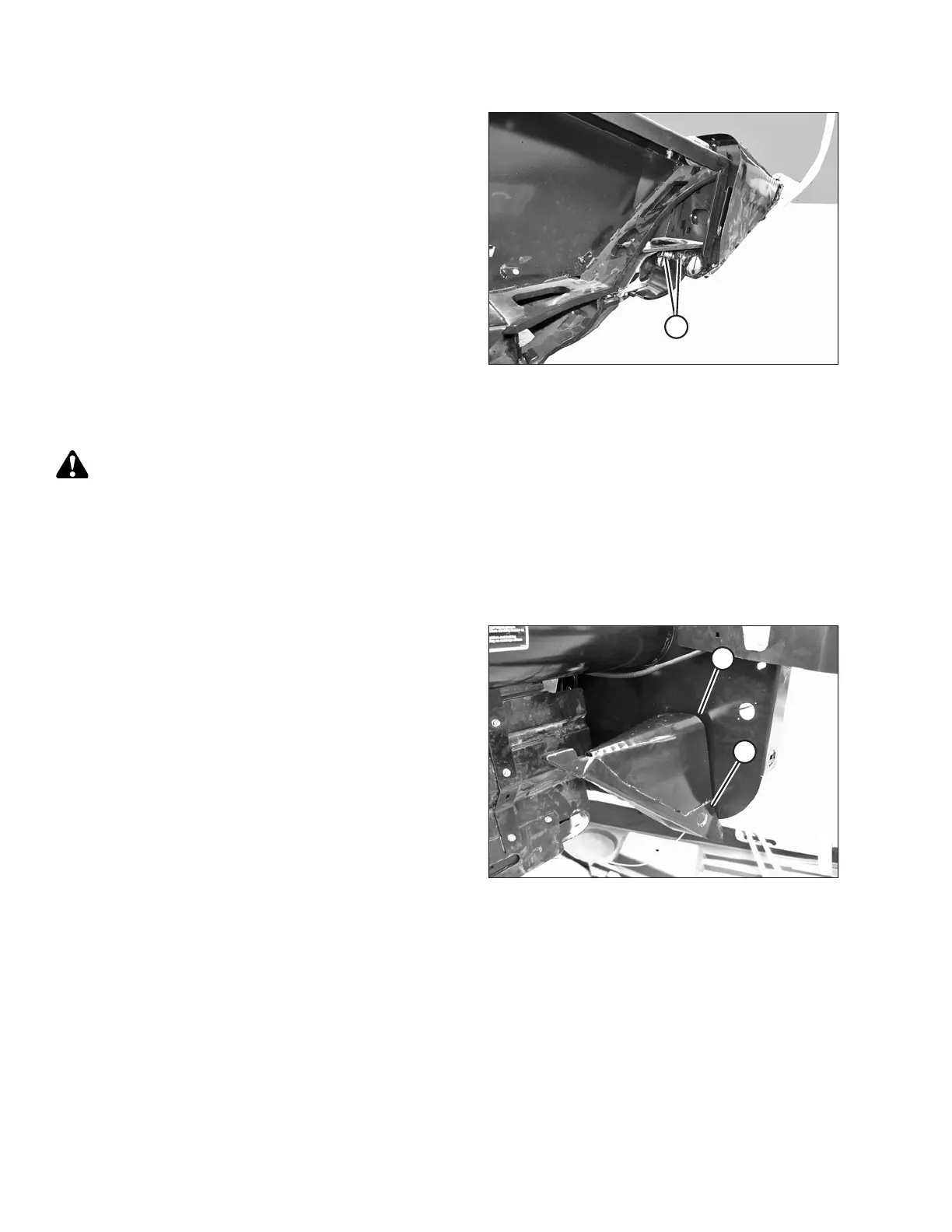

Figure 3.115: Crop Divider
7. Pull at the tip of the crop divider and ensure there is no
lateral movement. If necessary, adjust bolts (A) to
tighten crop divider and eliminate lateral movement.
8. Close or install endshields. Refer to 3.2.3 Endshields,
page 31.
Installing Crop Dividers without Latch Option onto Header
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
1. Lower reel, raise header, stop engine, remove key, and engage safety props. Refer to your combine operator’s
manual for instructions.
2. Open or remove endshields. Refer to 3.2.3 Endshields, page 31.
Figure 3.116: Stored Crop Divider
3. Remove crop divider from storage location by lifting
crop divider to disengage lugs (A) at lower end and then
lowering it slightly to disengage pin (B) from endsheet.
OPERATION
