MacDon FD75 - Setting Preset Cutting Height (John Deere S and T Series)

214323 188 Revision A
1003759
A

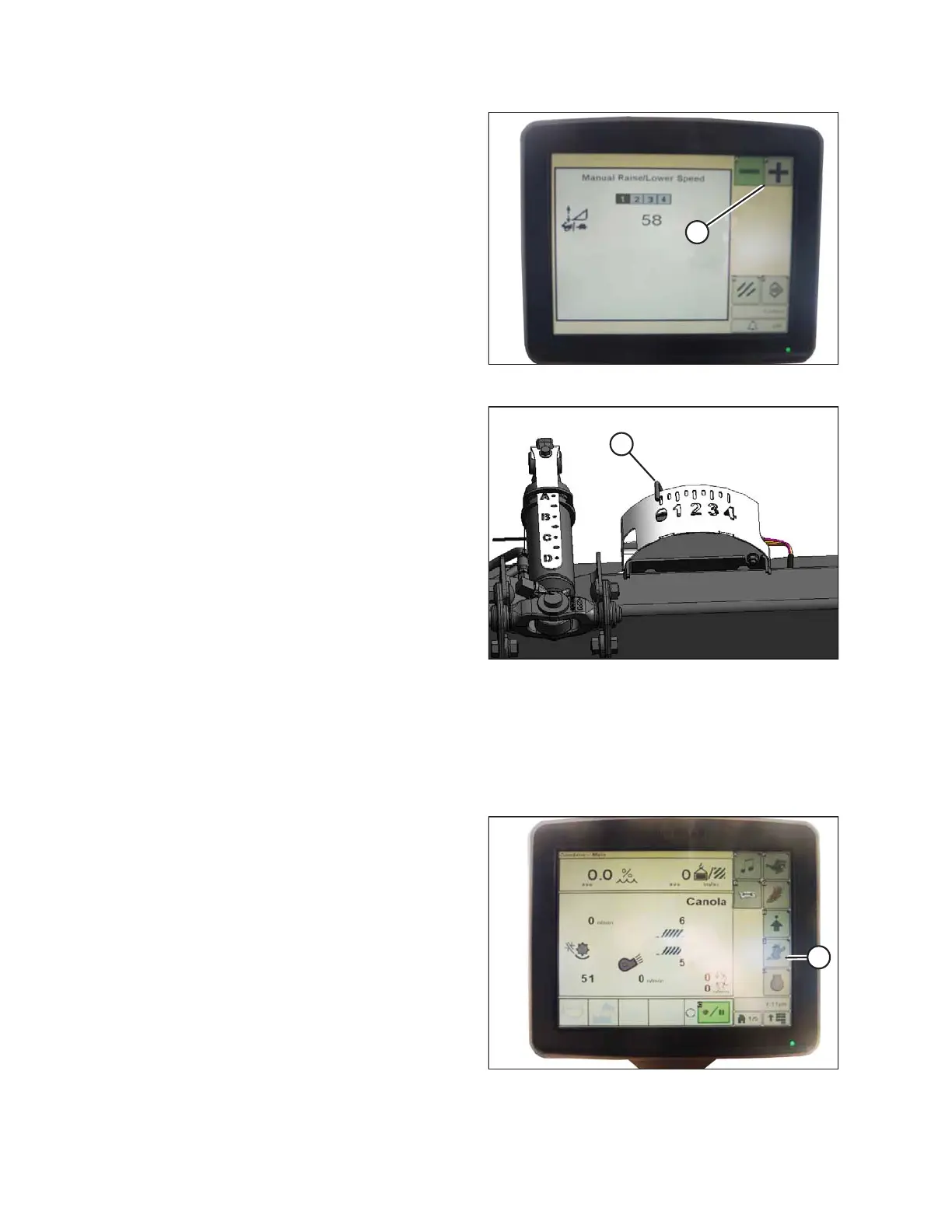

Figure 3.306: John Deere Combine Display
2. Press – or + icon (A) to adjust rates.
NOTE:
The numbers depicted on displays in these illustrations
are for reference purposes only; they are not intended
to represent specific settings for your equipment.
1014883
A
Figure 3.307: Float Indicator Box
NOTE:
The ideal ground pressure—in most cases—is one
number (on float indicator box) above header
suspended off ground. For example, if float indicator
needle (A) is positioned at 0 with header suspended off
ground, then ideal ground pressure will be achieved
with needle positioned at 1. Operating with heavier
pressures can wear cutterbar wearplate prematurely.
Setting Preset Cutting Height (John Deere S and T Series)
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
1003954
A
Figure 3.308: Combine Display
1. Press COMBINE – HEADER SETUP icon (A) on main
page. The COMBINE – HEADER SETUP page
appears. This page is used to set various header
settings such as reel speed, header width, and height of
feeder house for acre counter engagement.
OPERATION
