Adjusting Endshield
Polyethylene endshields expand or contract when subjected to large temperature changes. The position of the top
pin and lower catch can be adjusted to compensate for dimensional changes.

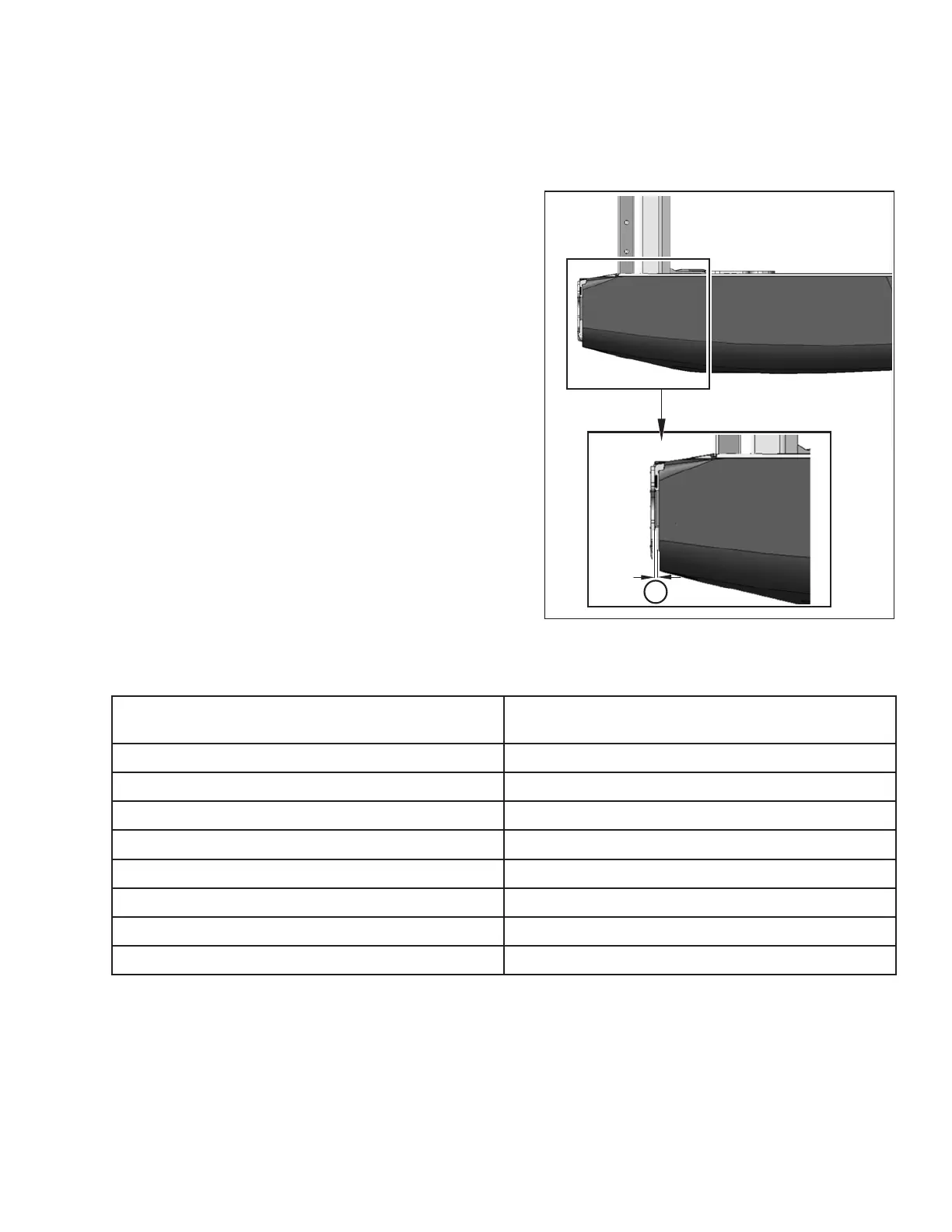

Figure 3.16: Left Endshield
1. Measure gap (X) between the front end of the endshield
and the header frame and compare the measurement
to the values provided in Table 3.1, page 35.
Table 3.1 Gap (X) Chart
Temperature
°C (°F)
Gap (X) between Endshield and Frame
mm (in.)
-4 (25) 28 (1-1/8)
7 (45) 24 (1)
18 (65) 20 (13/16)
29 (85) 16 (5/8)
41 (105) 12 (1/2)
52 (125) 8 (5/16)
63 (145) 4 (3/16)
89 (165)
0
