5.11.3 Replacing Feed Deflectors on New Holland CR Combines
1. Detach the header from the combine. Refer to 4 Header Attachment/Detachment, page 269.

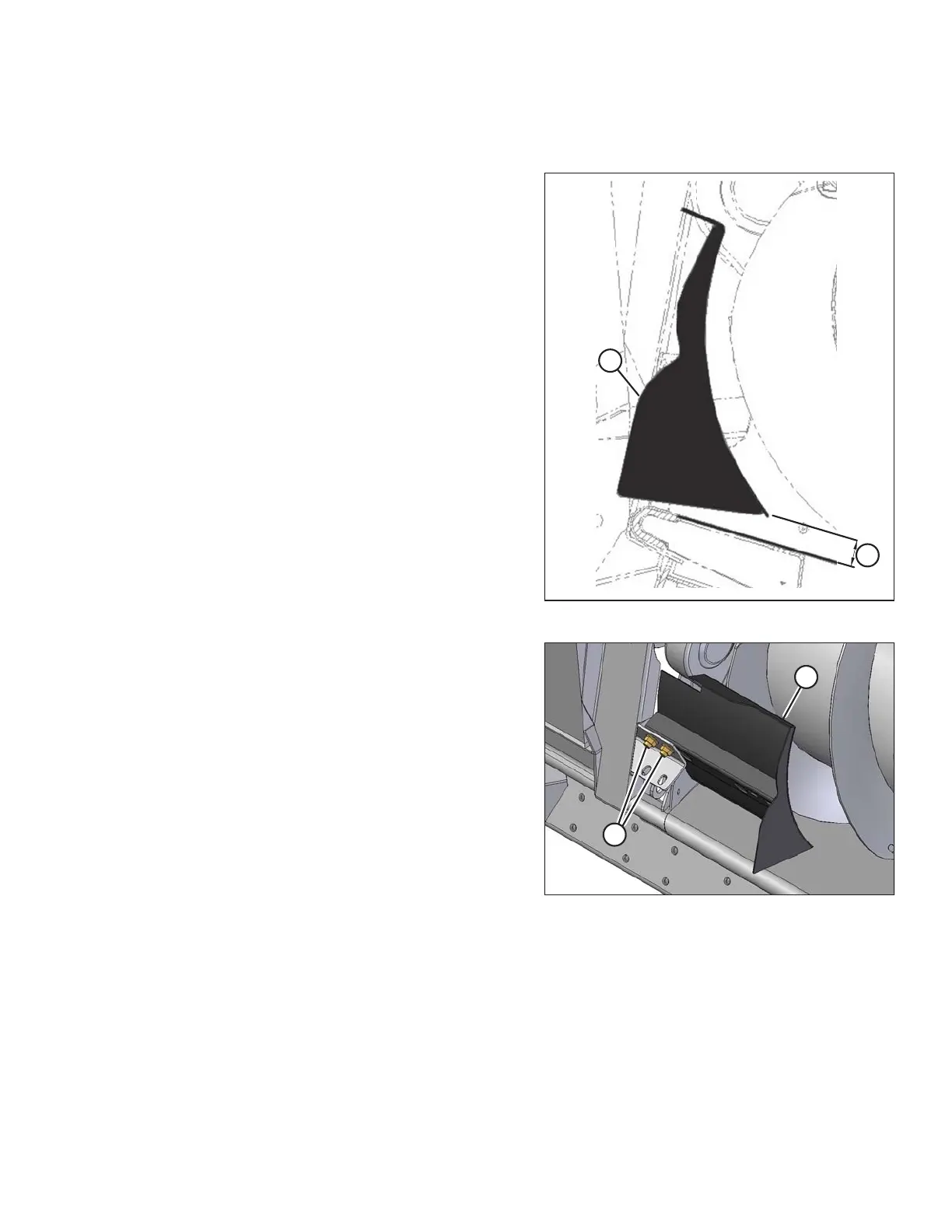

Figure 5.183: Feed Deflector – End View
2. Measure gap (B) between existing feed deflector (A)
and the forward edge of the pan.
Figure 5.184: Feed Deflector
3. Remove the two bolts and nuts (B) securing feed
deflector (A) to the adapter frame, and remove the feed
deflector.
4. Position replacement feed deflector (A), and secure
with bolts and nuts (B) (ensure the nuts are facing the
combine). Maintain the original gap, measured in
Step 2, page 417, between the feed deflector and the
forward edge of the pan.
5. Repeat for the opposite deflector.
6. Attach the header to the combine. Refer to 4 Header
Attachment/Detachment, page 269.
7. Extend the center-link fully, and check the gap between
feed deflector (A) and the pan. Maintain a 19–25 mm
(3/4–1 in.) gap.
