MacDon FD75 - Turning Accumulator off (John Deere 60 Series); Setting Sensing Grain Header Height to 50 (John Deere 60 Series)

214323 169 Revision A
1003593
A
B

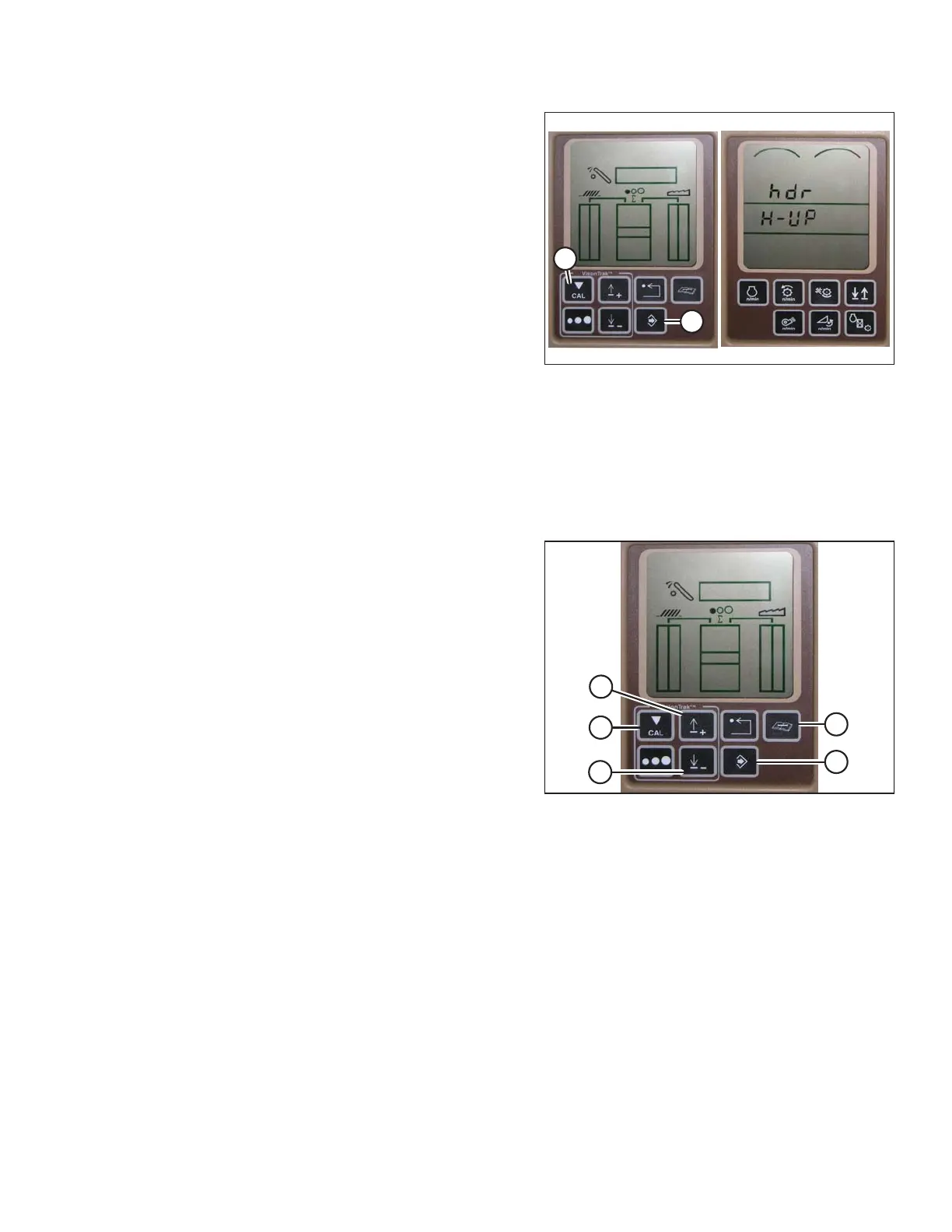

Figure 3.263: John Deere Combine Display
10. Press CAL button (A) to save calibration of header.
HDR H-UP appears on monitor.
11. Raise header three feet off ground and press CAL (A)
button. EOC appears on monitor.
12. Press ENTER button (B) to save calibration of header.
Your AHHC is now calibrated.
NOTE:
If an error code appears during calibration, sensor is out
of voltage range and will require adjustment. Refer to
Calibrating Auto Header Height Control (John Deere 60
Series), page 167.
NOTE:
After calibration is complete, adjust combine operation
settings to ensure proper field operation.
Turning Accumulator Off (John Deere 60 Series)
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
1003642
A
B
C
D
E
Figure 3.264: John Deere Combine Display
1. Press DIAGNOSTIC button (A) on monitor. DIA
appears on the monitor.
2. Press UP button (B) until EO1 appears on monitor, and
press ENTER (D). This is header adjustment.
3. Press UP (B) or DOWN (C) button until 132 is displayed
on top portion of monitor. This is reading for
accumulator.
4. Press ENTER (D) to select 132 as accumulator reading
(this will allow you to change display to a three-digit
number so it has a 0 in it, for example, x0x).
5. Press UP (B) or DOWN (C) button until desired number
is displayed, and press CAL (E) button.
6. Press ENTER (D) to save changes. The accumulator is
now deactivated.
Setting Sensing Grain Header Height to 50 (John Deere 60 Series)
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
To set sensing grain header height, follow these steps:
OPERATION
