MacDon FD75 - Lubricating Auger Drive Chain

214323 340 Revision A
1012796
A
B

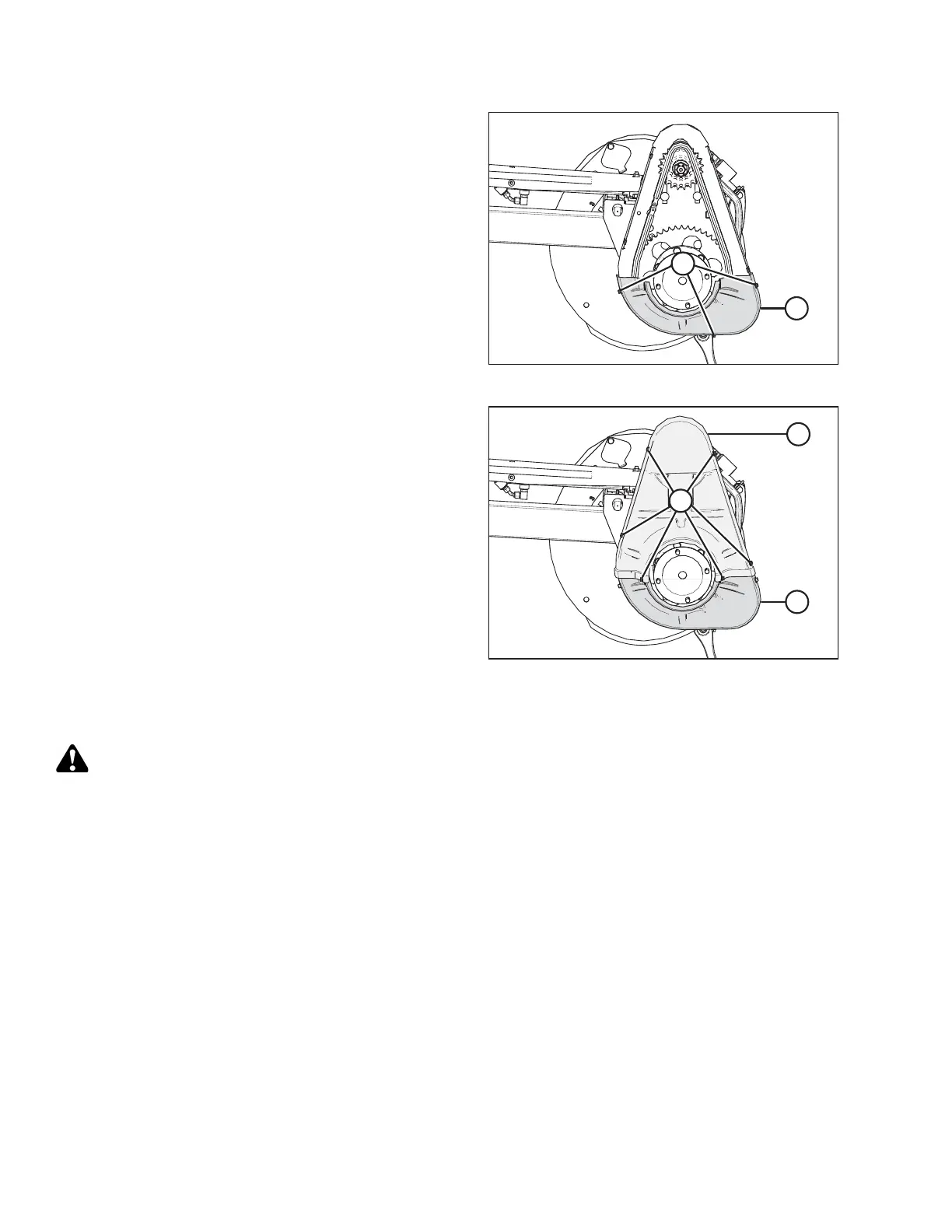

Figure 5.21: Drive Cover – Double Reel
5. Position lower drive cover (B) onto the reel drive (if
previously removed) and secure with three bolts (A).
1012795
A
B
C
Figure 5.22: Drive Cover – Double Reel
6. Position upper drive cover (B) onto the reel drive and
lower cover (C), and secure with six bolts (A).
Lubricating Auger Drive Chain
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
Lubricate the auger drive chain every 100 hours. Lubrication can be done with the adapter attached to the combine,
but it is easier with the adapter detached.
The auger drive cover consists of an upper and a lower half. Only the upper half needs to be removed to grease
the chain.
