MacDon FD75 - Installing Double-Reel U-Joint

214323 468 Revision A
1001325
A
B
C

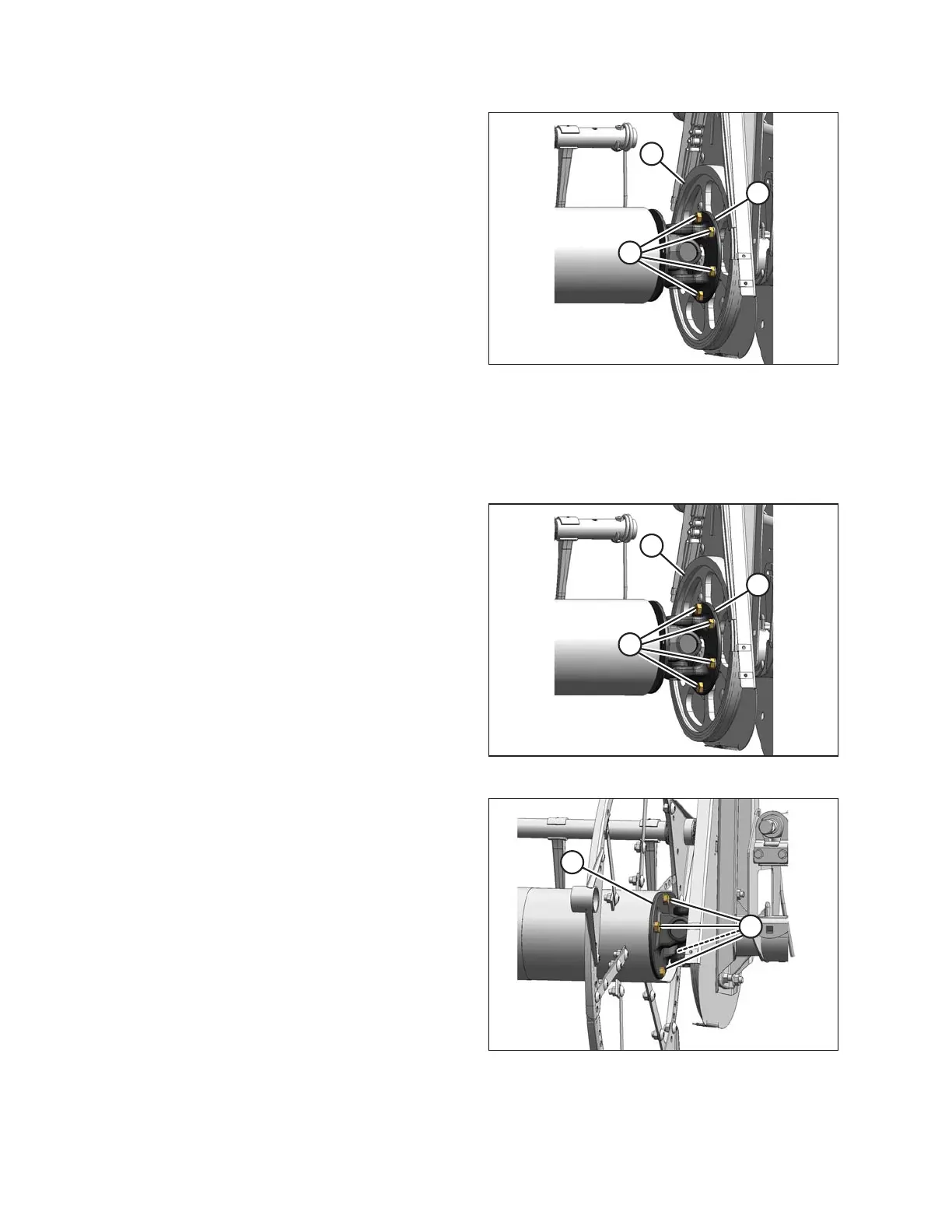

Figure 5.295: U-Joint
4. Remove the six bolts (A) attaching U-joint flange (B) to
driven sprocket (C).
5. Remove the U-joint.
NOTE:
It may be necessary to move the right reel sideways for
the U-joint to clear the tube.
Installing Double-Reel U-Joint
NOTE:
It may be necessary to move the right reel sideways for the U-joint to clear the reel tube.
1001325
A
B
C
Figure 5.296: U-Joint
1. Position U-joint flange (B) onto the driven sprocket (C)
as shown. Install six bolts (A) and hand-tighten. Do
NOT torque the bolts.
1001322
A
B
Figure 5.297: U-Joint
2. Position the right reel tube against the reel drive and
engage the stub shaft into the U-joint pilot hole.
3. Rotate the reel until the holes in the end of the reel tube
and U-joint flange (B) line up.
4. Apply Loctite
®
#243 (or equivalent) to four 1/2 in.
bolts (A) and secure with lock washers.
5. Torque to 102–115 Nm (75–85 lbf∙ft).
MAINTENANCE AND SERVICING
