MacDon FD75 - Attaching Tow-Bar

214323 264 Revision A
Attaching Tow-Bar
The tow-bar consists of two sections, which make storage and handling easier.
1004705
A
B
C
D

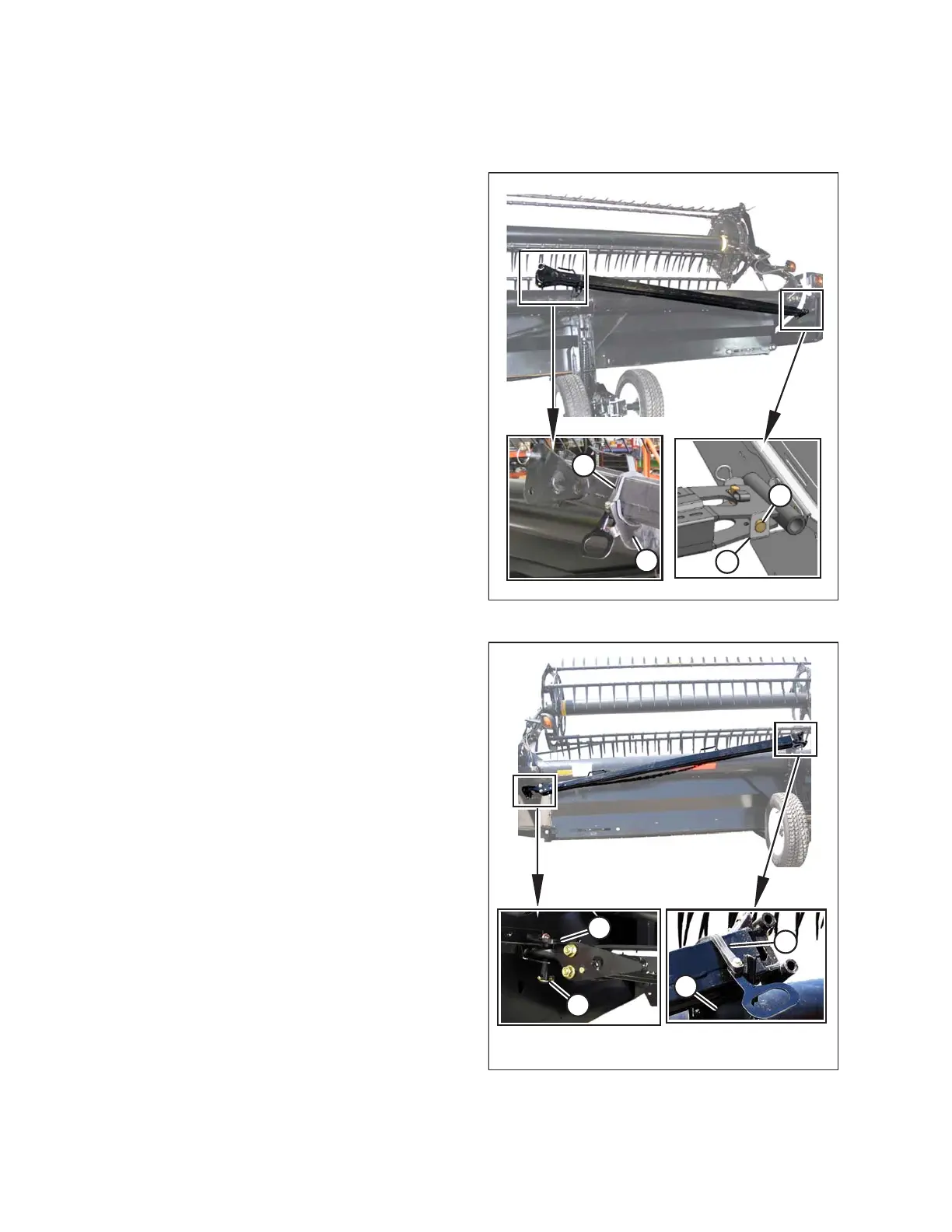

Figure 3.470: Tow-Bar Removal – Right Side
1. Unhook rubber strap (D) from cradle (A) on the right
side of the header.
2. Remove clevis pin (C) and detach the tube end from
support (B).
3. Replace clevis pin (C).
4. Lift the inner half of the tow-bar off the header and place
it near the left side of the header.
1004704
A
B
C
D
Figure 3.471: Tow-Bar Removal – Left Side
5. Unhook rubber strap (D) from cradle (A) on the left side
of the header.
6. Remove hitch pin (C) from support (B), and remove the
tow-bar.
7. Install rubber strap (D) on cradle (A).
