MacDon FD75 - Case IH Combines; Attaching Header to Case IH Combine

214323 270 Revision A
4.2 Case IH Combines
4.2.1 Attaching Header to Case IH Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1001498
B
A

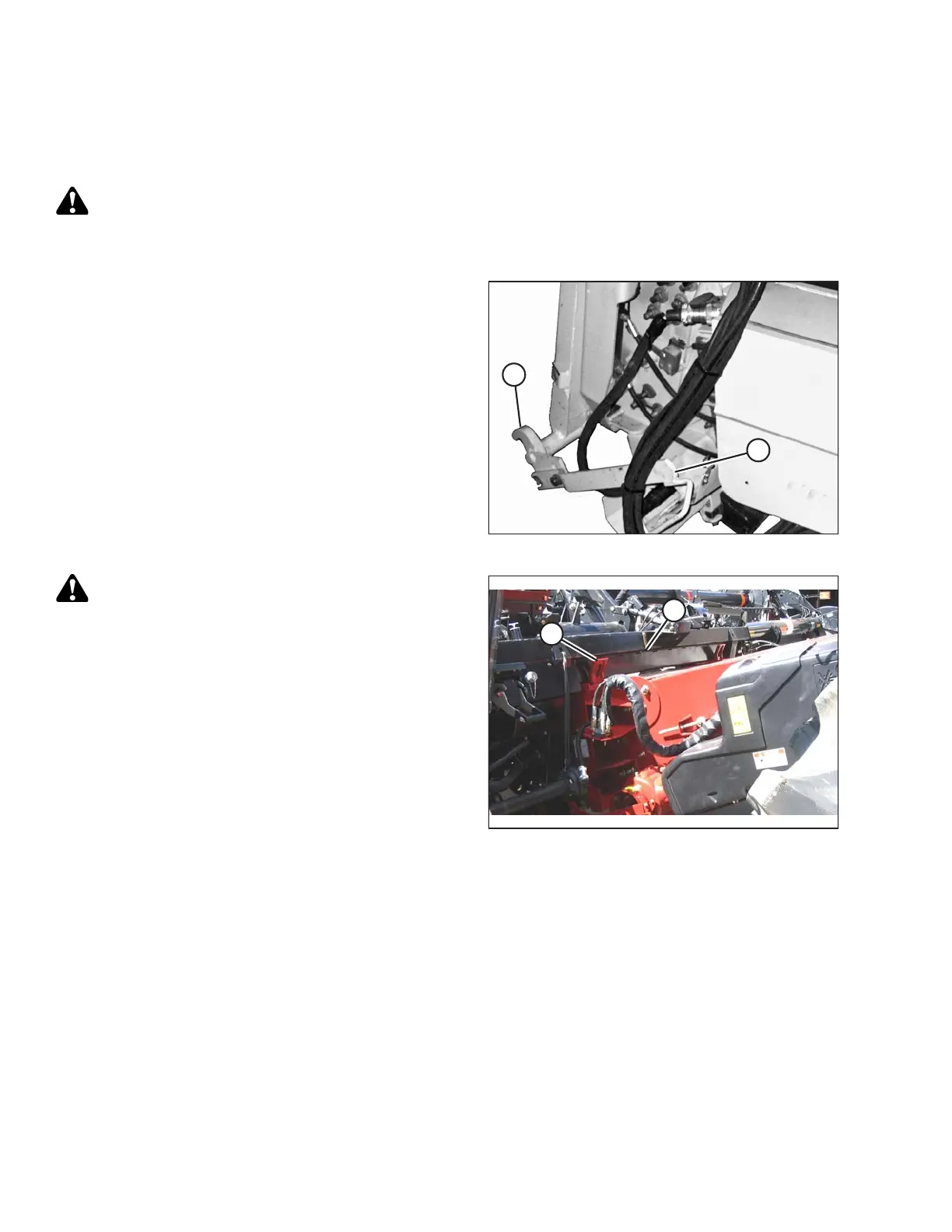

Figure 4.1: Feeder House Lock
1. On combine, ensure lock handle (A) is positioned so
hooks (B) can engage adapter.
1001444
A
B
Figure 4.2: Combine and Adapter
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start engine and slowly drive combine up to header
until feeder house saddle (A) is directly under adapter
top cross member (B).
3. Raise feeder house slightly to lift header, ensuring
feeder saddle is properly engaged in adapter frame.
4. Stop engine and remove key from ignition.
HEADER ATTACHMENT/DETACHMENT
