MacDon FD75 - Setting Cutting Height Manually (CLAAS 500 Series)

214323 207 Revision A
1010068
C
D
A
B
E

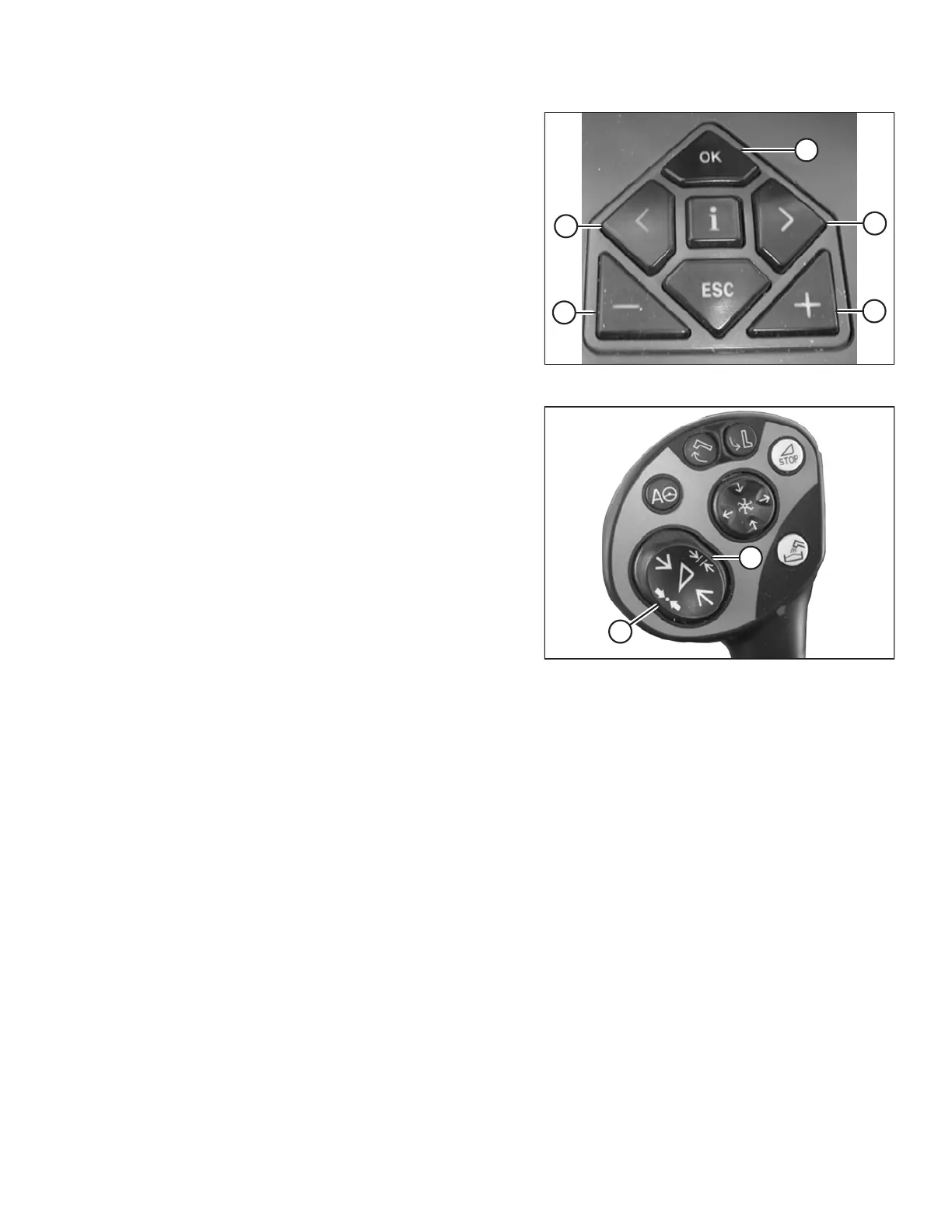

Figure 3.354: CLAAS Combine Controls
6. Use < key (C) or > key (D) to select CUTTING HEIGHT
page, and press OK key (E).
7. Use – key (A) or + key (B) to set desired cutting height.
An arrow indicates selected cutting height on scale.
1003744
A
B
Figure 3.355: Joystick Buttons
8. Briefly press button (A) or button (B) in order to select
set point.
9. Repeat Step 7, page 207 for set point.
Setting Cutting Height Manually (CLAAS 500 Series)
To set cutting height manually, follow these steps:
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to
combine operator’s manual for updates.
