MacDon FD75 - Installing Feed Auger Tines

214323 371 Revision A
Installing Feed Auger Tines
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Raise the reel.
2. Shut down the combine, and remove the key from the ignition.
3. Engage the reel safety props.
1001431
A
B

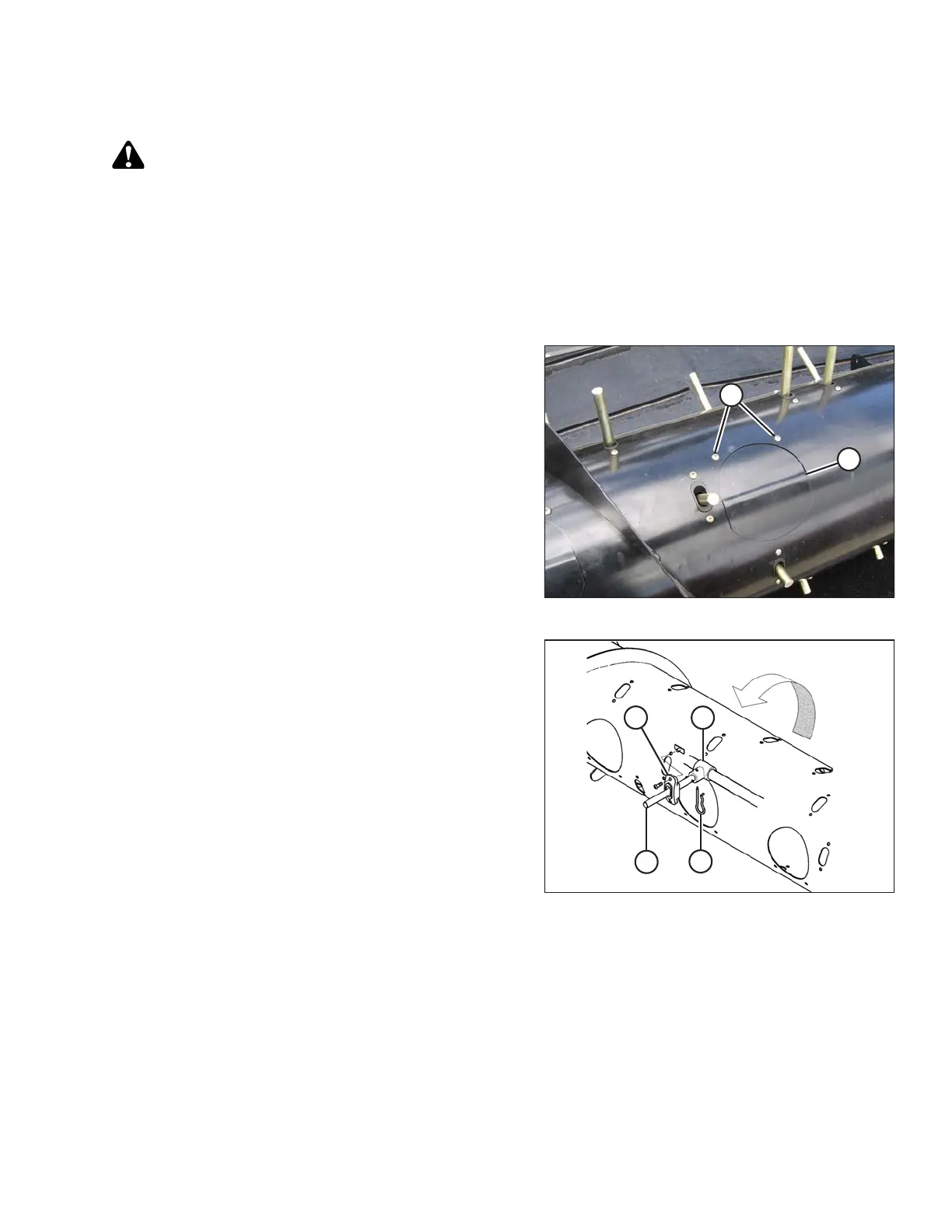

Figure 5.86: Auger
4. Remove screws (A) and remove access cover (B) (if not
previously removed).
1001433
A
B
C
D
Figure 5.87: Tine
5. Insert tine (B) through plastic guide (D) from inside
the auger.
6. Insert the tine into bushing (C) and secure with
hairpin (A).
