MacDon FD75 - Engaging Auto Header Height Control (New Holland CR;CX Series)

214323 225 Revision A
1003675
A
B

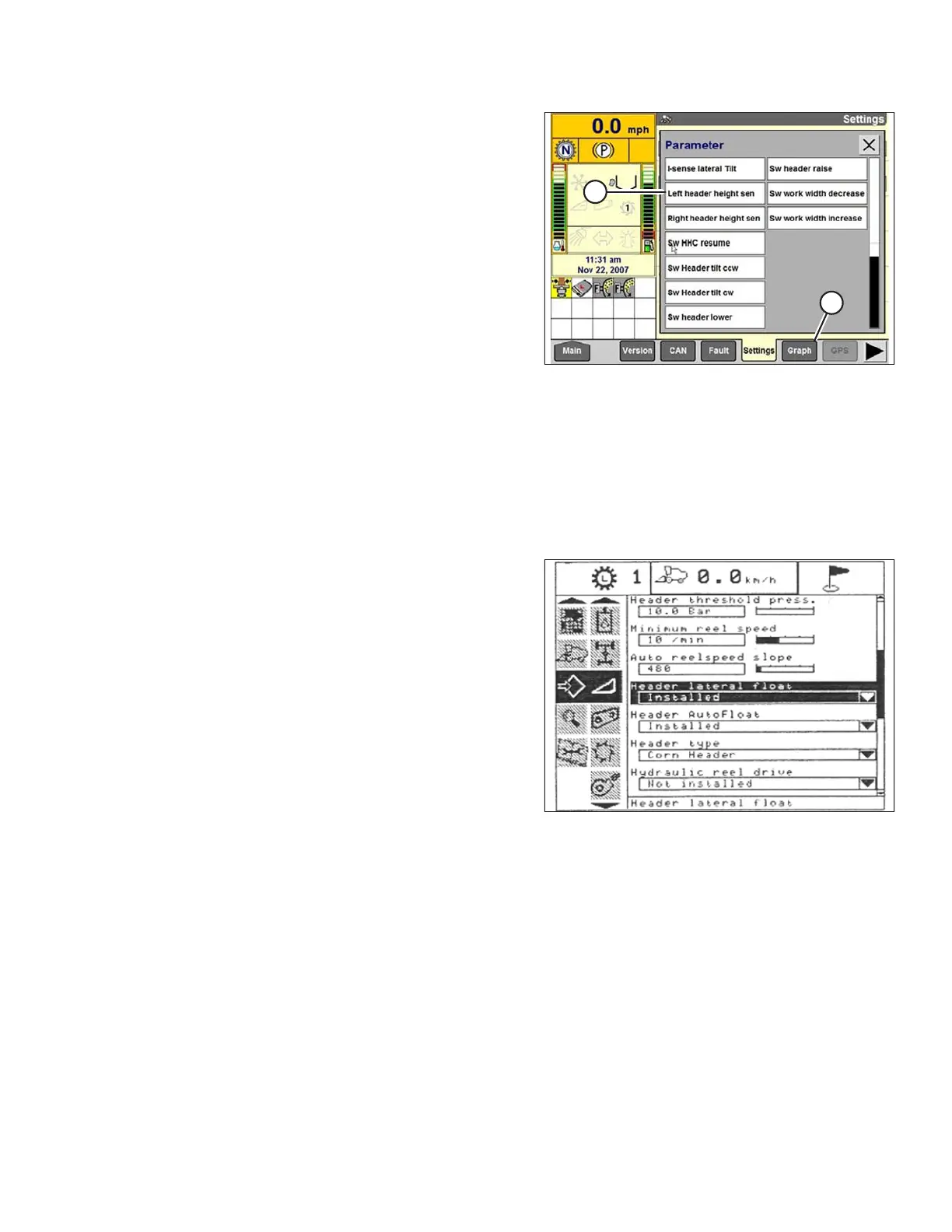

Figure 3.393: New Holland Combine Display
9. Select LEFT HEADER HEIGHT SEN (A), and then
select GRAPH button (B). The exact voltage is
displayed at top of page.
10. Raise and lower header to see full range of voltage
readings.
11. Adjust voltage limits (refer to Adjusting Voltage Limits, page 105) if sensor voltage is not within low and high
limits or if range between low and high limits is insufficient (refer to Table 3.13, page 103).
Engaging Auto Header Height Control (New Holland CR/CX Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
1003581
Figure 3.394: New Holland Combine Display
1. Select HEADER LATERAL FLOAT on combine display,
and press ENTER.
2. Use up and down navigation keys to move between
options, and select INSTALLED.
OPERATION
