214323 89 Revision A
Repositioning Fore-Aft Cylinders with Multi-Crop Rapid Reel Conversion Option
The reel can be moved approximately 227 mm (9 in.) farther aft by repositioning the fore-aft cylinders on the
reel arms.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
Reposition the left arm cylinder as follows:
NOTE:
Reel components not shown in illustration for improved clarity.

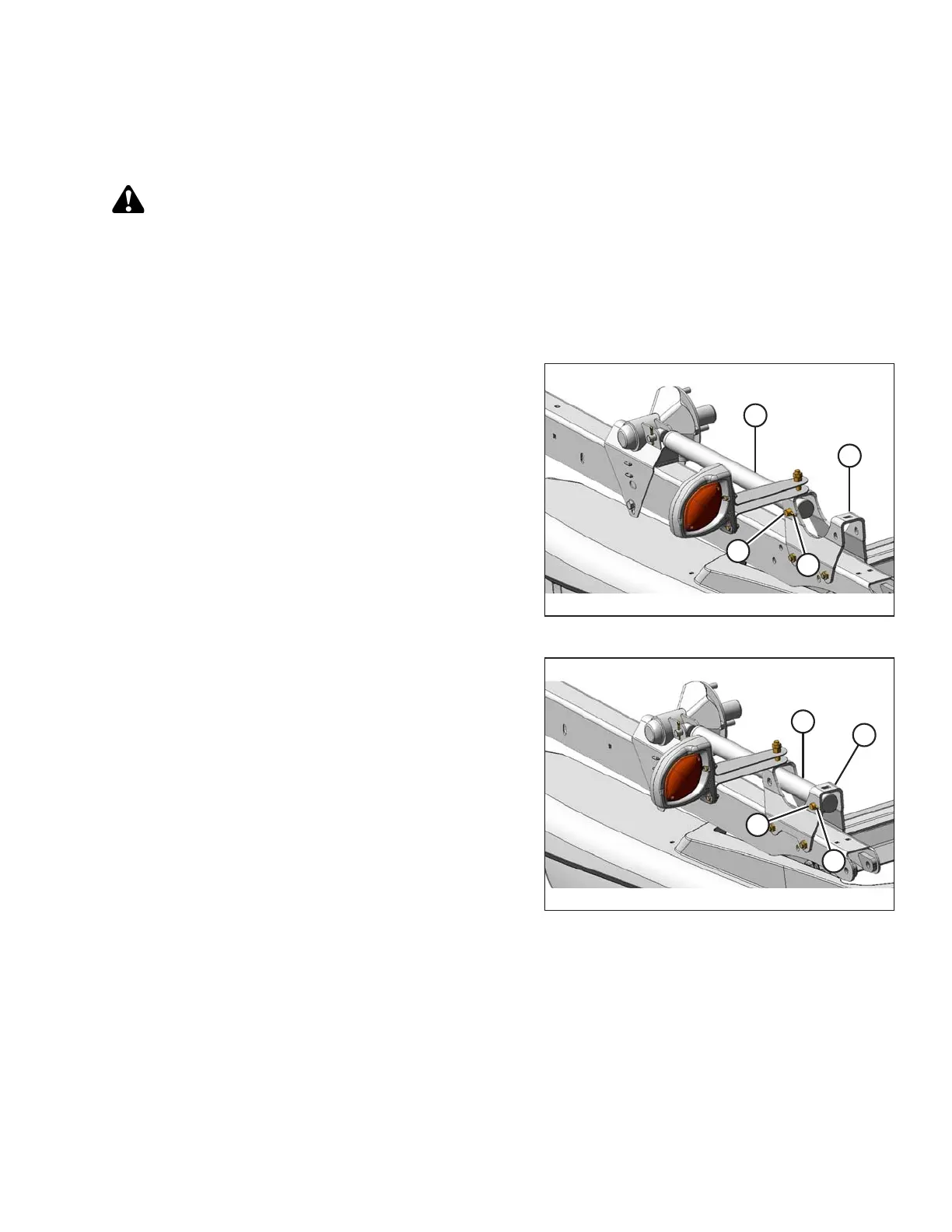

Figure 3.98: Forward Position – Left Arm
Figure 3.99: Aft Position – Left Arm
1. Position reel fully aft with support arms horizontal.
2. Stop the engine and remove the key from the ignition.
3. Remove cotter pin (A) and clevis pin (B).
4. Push the reel back until cylinder barrel (C) lines up with
the aft holes in bracket (D).
5. Reinstall clevis pin (B) at the new position and secure
with cotter pin (A).
OPERATION
