MacDon FD75 - Closing Endshield

214323 32 Revision A
1001363

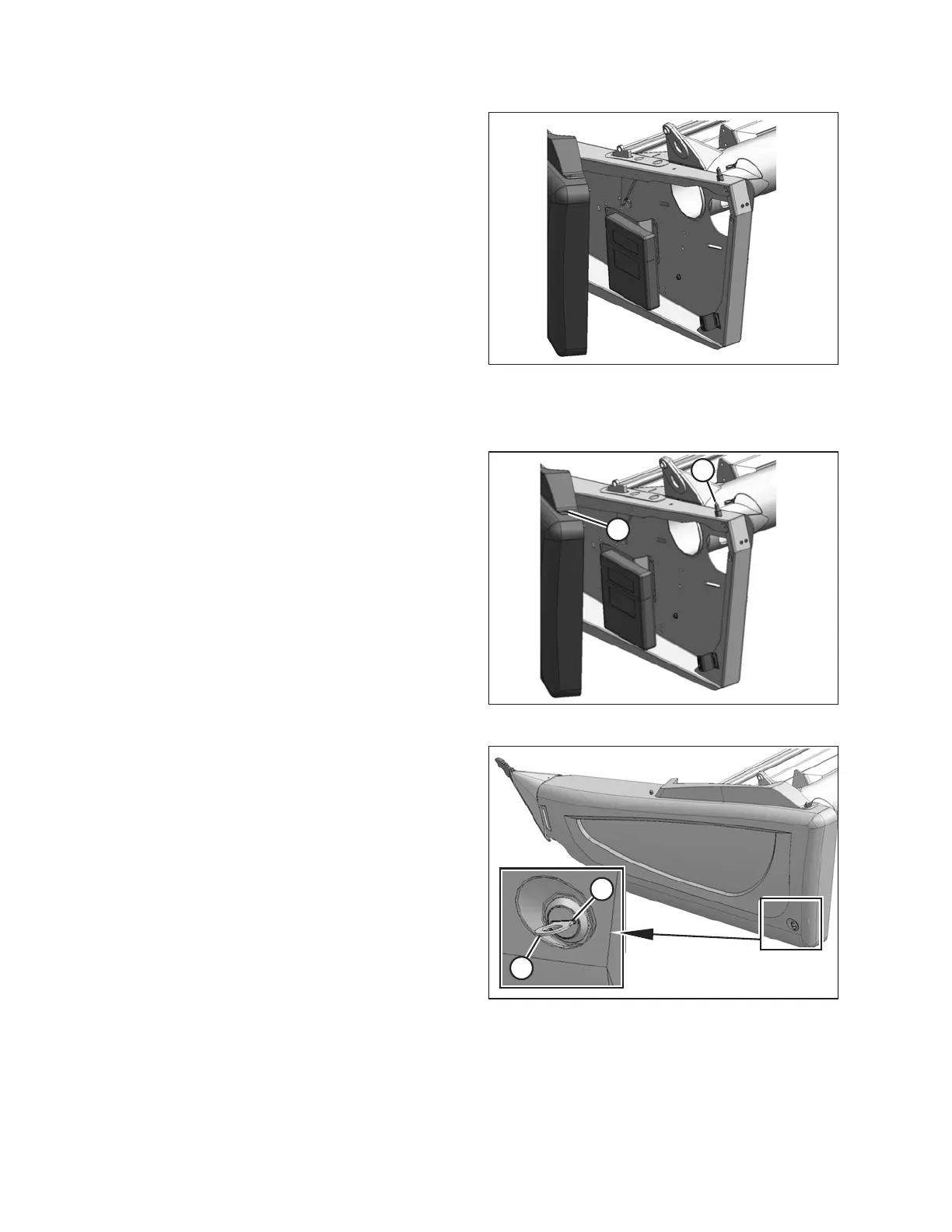

Figure 3.9: Left Endshield Open
IMPORTANT:
Do NOT force endshield once it has reached its end of
travel or damage to endshield structure may result. The
endshield is designed to open sufficiently to allow access
to drive system and manual case.
NOTE:
To access the knife drive box, carefully disengage front
of endshield from tab at front of endsheet and swing
front of endshield away from header.
NOTE:
If complete access to endsheet area is required, remove
endshield. Refer to Removing Endshield, page 33.
Closing Endshield
1013787
B
A
Figure 3.10: Left Endshield
1. Maintain forward pressure and swing the rear of the
endshield towards the header.
2. Lift the endshield and engage pin (A) located on the top
of the endsheet frame with the hole in endshield (B).
1001368
B
A
Figure 3.11: Left Endshield
3. Push in the endshield to engage lower latch (A).
4. Use tool (B) to lock lower latch (A).
OPERATION
