MacDon FD75 - Removing Endshield

214323 33 Revision A
10013651001365
A
B
C

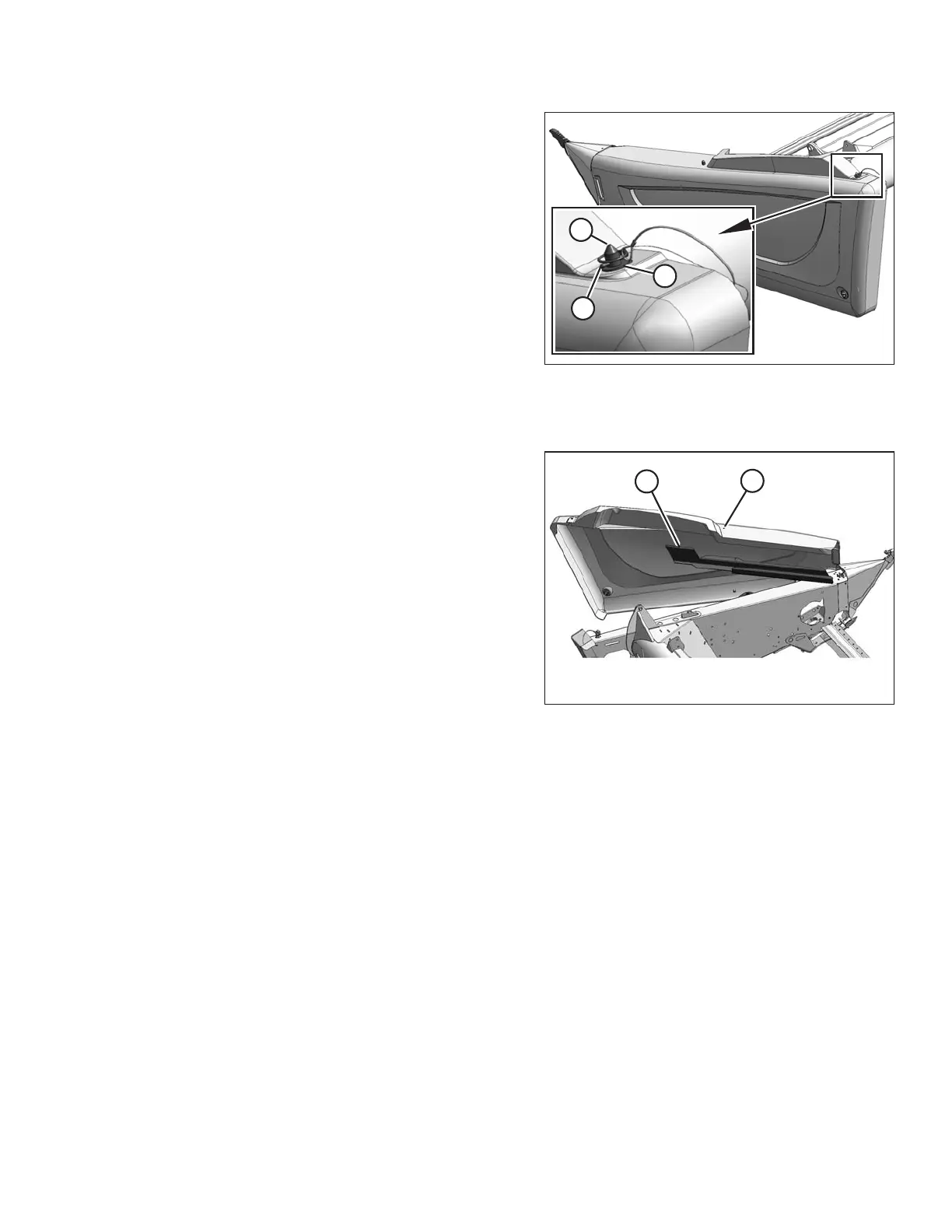

Figure 3.12: Left Endshield Pin
5. Replace tool (B) and lynch pin (A) on top pin (C).
Removing Endshield
1001228
A
B
Figure 3.13: Left Endshield
1. Open the endshield. Refer to Opening Endshield, page
31.
2. Remove the acorn nut (A) securing the endshield to
support (B).
3. Lift the endshield off support (B).
OPERATION
